ofswitch13-interface.cc File Reference

#include "ofswitch13-interface.h"
#include "ofswitch13-controller.h"
#include "ofswitch13-device.h"

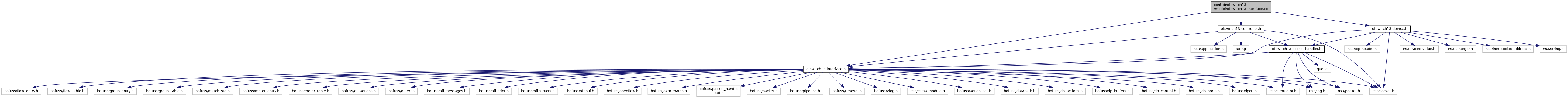

Include dependency graph for ofswitch13-interface.cc:

Go to the source code of this file.

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Functions
struct ofpbuf *	ns3::BufferFromPacket (Ptr< const Packet > packet, size_t bodyRoom, size_t headRoom=0)
	Create an internal BOFUSS buffer from ns3::Packet. More...
void	dp_actions_output_port (struct packet *pkt, uint32_t out_port, uint32_t out_queue, uint16_t max_len, uint64_t cookie)
void	dpctl_send_and_print (struct vconn *vconn, struct ofl_msg_header *msg)
void	dpctl_transact_and_print (struct vconn *vconn, struct ofl_msg_header *req, struct ofl_msg_header **repl)
void	ns3::EnableBofussLog (bool printToFile=false, std::string prefix="", bool explicitFilename=false, std::string customLevels="")
	Enable the logging system of the BOFUSS library. More...
Ptr< Packet >	ns3::PacketFromBuffer (struct ofpbuf *buffer)
	Create a new ns3::Packet from internal BOFUSS buffer. More...
Ptr< Packet >	ns3::PacketFromMsg (struct ofl_msg_header *msg, uint32_t xid=0)
	Create a new ns3::Packet from internal OFLib message. More...
int	send_openflow_buffer_to_remote (struct ofpbuf *buffer, struct remote *remote)
void	send_packet_to_controller (struct pipeline *pl, struct packet *pkt, uint8_t table_id, uint8_t reason)
	Overriding BOFUSS weak functions using static member functions. More...
long long int	time_msec (void)
	Overriding BOFUSS time_msec weak function from timeval.c. More...
time_t	time_now (void)
	Overriding BOFUSS time_now weak function from timeval.c. More...

Function Documentation

dp_actions_output_port()

void dp_actions_output_port	(	struct packet *	pkt,
		uint32_t	out_port,
		uint32_t	out_queue,
		uint16_t	max_len,
		uint64_t	cookie
	)

Definition at line 151 of file ofswitch13-interface.cc.

References ns3::OFSwitch13Device::DpActionsOutputPort().

Here is the call graph for this function:

dpctl_send_and_print()

void dpctl_send_and_print	(	struct vconn *	vconn,
		struct ofl_msg_header *	msg
	)

Definition at line 165 of file ofswitch13-interface.cc.

References ns3::OFSwitch13Controller::DpctlSendAndPrint().

Here is the call graph for this function:

dpctl_transact_and_print()

void dpctl_transact_and_print	(	struct vconn *	vconn,
		struct ofl_msg_header *	req,
		struct ofl_msg_header **	repl
	)

Definition at line 171 of file ofswitch13-interface.cc.

References ns3::OFSwitch13Controller::DpctlSendAndPrint().

Here is the call graph for this function:

send_openflow_buffer_to_remote()

int send_openflow_buffer_to_remote	(	struct ofpbuf *	buffer,
		struct remote *	remote
	)

Definition at line 145 of file ofswitch13-interface.cc.

References ns3::OFSwitch13Device::SendOpenflowBufferToRemote().

Here is the call graph for this function:

send_packet_to_controller()

void send_packet_to_controller	(	struct pipeline *	pl,
		struct packet *	pkt,
		uint8_t	table_id,
		uint8_t	reason
	)

Overriding BOFUSS weak functions using static member functions.

Definition at line 136 of file ofswitch13-interface.cc.

References ns3::OFSwitch13Device::SendPacketToController().

Here is the call graph for this function:

time_msec()

long long int time_msec

(

void

)

Overriding BOFUSS time_msec weak function from timeval.c.

Returns

The current simulation time, in milliseconds.

Definition at line 129 of file ofswitch13-interface.cc.

References ns3::Time::GetMilliSeconds(), and ns3::Simulator::Now().

Referenced by ns3::OFSwitch13Queue::AddQueue(), and ns3::OFSwitch13Port::NotifyConstructionCompleted().

Here is the call graph for this function:

Here is the caller graph for this function:

time_now()

time_t time_now

(

void

)

Overriding BOFUSS time_now weak function from timeval.c.

Returns

The current simulation time, in seconds.

Definition at line 119 of file ofswitch13-interface.cc.

References ns3::Simulator::Now(), ns3::Time::S, and ns3::Time::ToInteger().

Referenced by ns3::OFSwitch13Device::DatapathNew(), ns3::OFSwitch13Device::DatapathTimeout(), and SwitchFlowTableTestCase::DoRun().

Here is the call graph for this function:

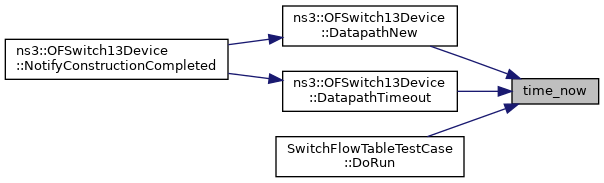

Here is the caller graph for this function:
