ns3::TunnelController Class Reference

This controller is responsible for installing the forwarding rules on the switches. More...

#include "tunnel-controller.h"

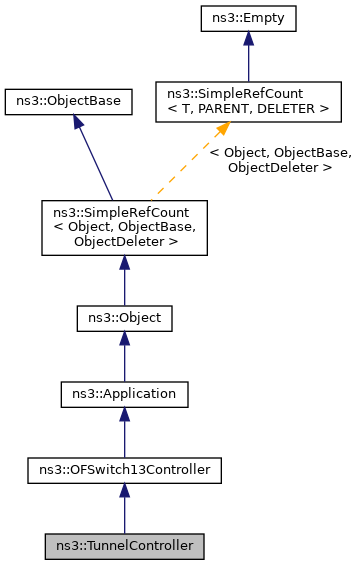

Inheritance diagram for ns3::TunnelController:

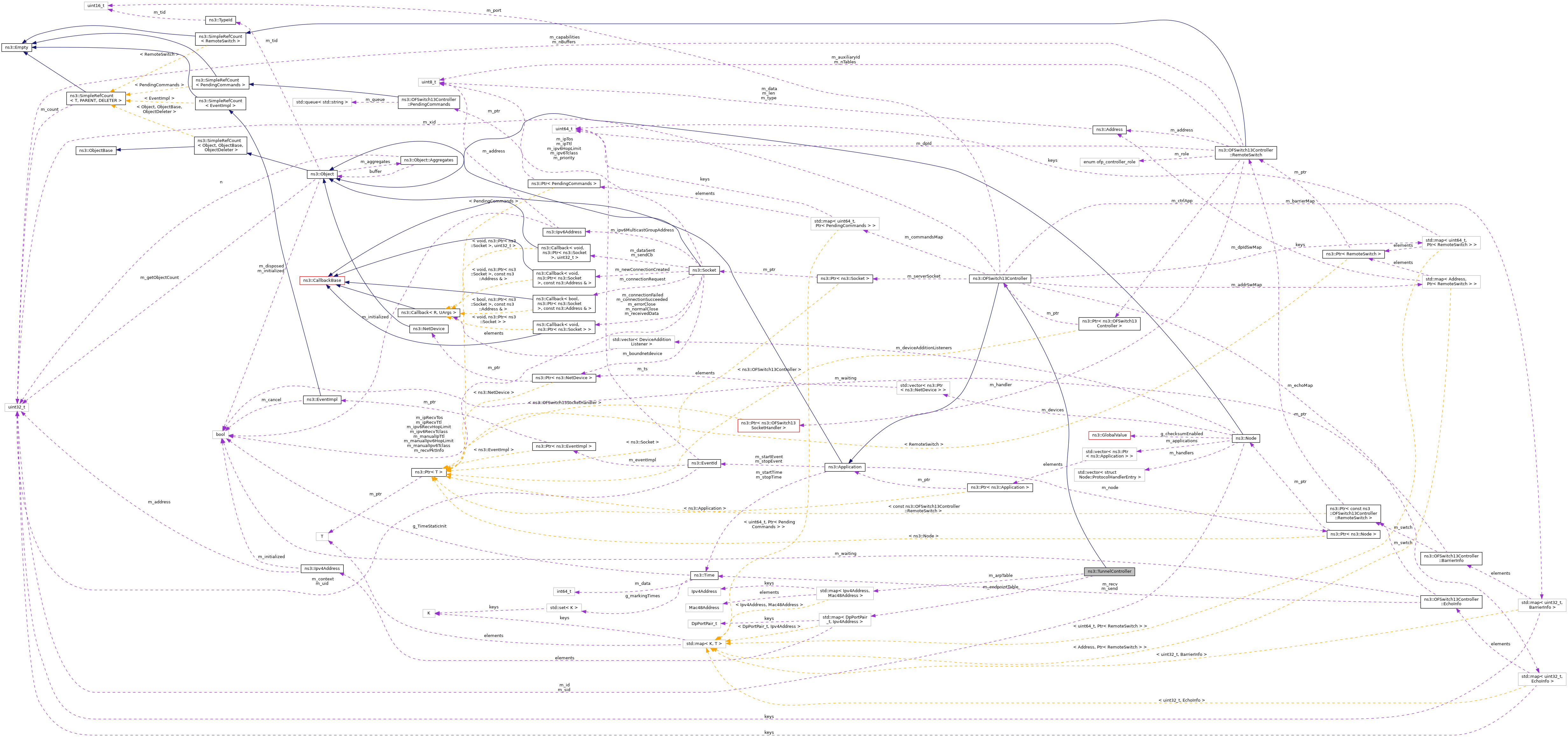

Collaboration diagram for ns3::TunnelController:

Public Member Functions
	TunnelController ()
	Default constructor. More...
	~TunnelController () override
	Dummy destructor, see DoDispose. More...
void	SaveArpEntry (Ipv4Address ipAddr, Mac48Address macAddr)
	Save the pair IP / MAC address in ARP table. More...
void	SaveTunnelEndpoint (uint64_t dpId, uint32_t portNo, Ipv4Address ipAddr)
	Save the pair datapath ID + port no / IP address in tunnel endpoint table. More...
Public Member Functions inherited from ns3::OFSwitch13Controller
	OFSwitch13Controller ()
	Default constructor. More...
	~OFSwitch13Controller () override
	Dummy destructor, see DoDispose. More...
void	DoDispose () override
	Destructor implementation. More...
int	DpctlExecute (uint64_t dpId, const std::string textCmd)
	Execute a dpctl command to interact with the remote switch. More...
Public Member Functions inherited from ns3::Application
	Application ()
	~Application () override
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time. More...
void	SetStopTime (Time stop)
	Specify application stop time. More...
Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...
	~Object () override
	Destructor. More...
void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...
void	Dispose ()
	Dispose of this Object. More...
AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...
TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...
template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...
template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...
template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...
void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...
bool	IsInitialized () const
	Check if the object has been initialized. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

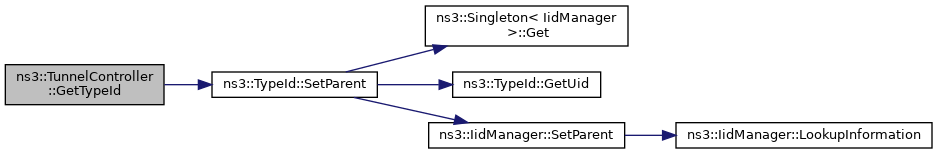

static TypeId	GetTypeId ()
	Register this type. More...
Static Public Member Functions inherited from ns3::OFSwitch13Controller
static void	DpctlSendAndPrint (struct vconn *vconn, struct ofl_msg_header *msg)
	Overriding BOFUSS dpctl_send_and_print and dpctl_transact_and_print weak functions from utilities/dpctl.c. More...
static TypeId	GetTypeId ()
	Register this type. More...
Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions

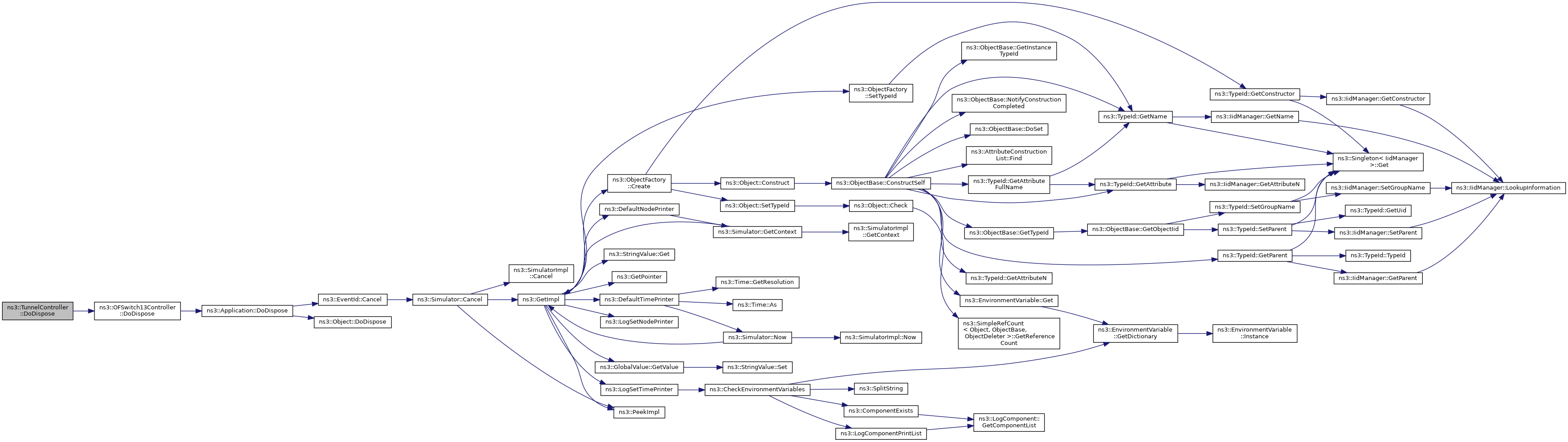

void	DoDispose () override
	Destructor implementation. More...

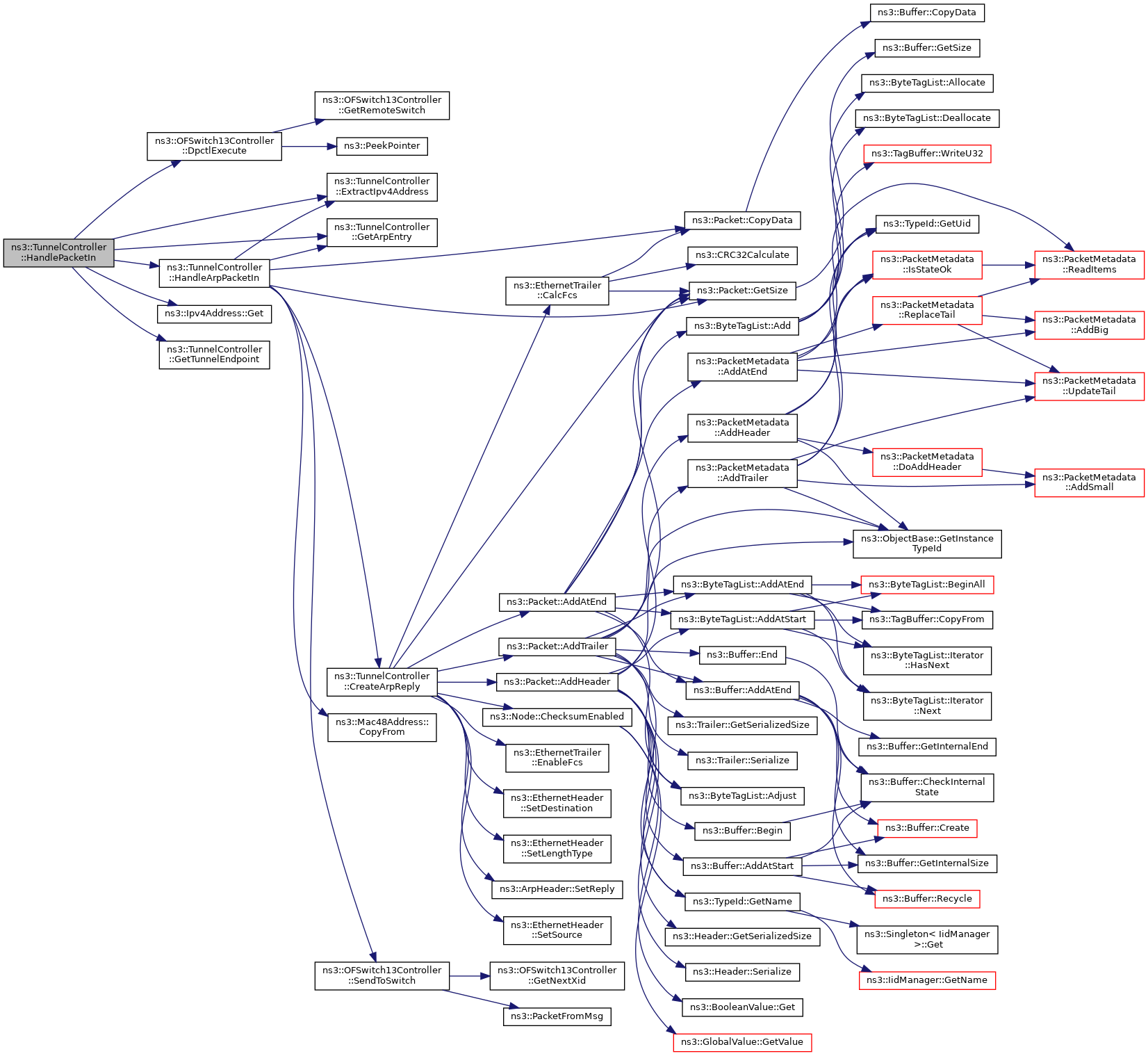

ofl_err	HandlePacketIn (struct ofl_msg_packet_in *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid) override
	Handle a packet in message sent by the switch to this controller. More...

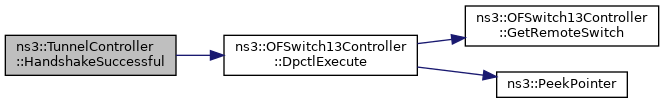

void	HandshakeSuccessful (Ptr< const RemoteSwitch > swtch) override
	Function invoked after a successfully handshake procedure between this controller and a remote switch. More...
Protected Member Functions inherited from ns3::OFSwitch13Controller
uint32_t	GetNextXid ()
Ptr< const RemoteSwitch >	GetRemoteSwitch (uint64_t dpId) const
	Get the remote switch for this OpenFlow datapath ID. More...
void	SendBarrierRequest (Ptr< const RemoteSwitch > swtch)
	Send a barrier request message to switch, and wait for a non-blocking reply. More...
void	SendEchoRequest (Ptr< const RemoteSwitch > swtch, size_t payloadSize=0)
	Send an echo request message to switch, and wait for a non-blocking reply. More...
int	SendToSwitch (Ptr< const RemoteSwitch > swtch, struct ofl_msg_header *msg, uint32_t xid=0)
	Send a OFLib message to a registered switch. More...
void	StartApplication () override
	Application specific startup code. More...
void	StopApplication () override
	Application specific shutdown code. More...
ofl_err	HandleEchoRequest (struct ofl_msg_echo *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
ofl_err	HandleEchoReply (struct ofl_msg_echo *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
ofl_err	HandleBarrierReply (struct ofl_msg_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
ofl_err	HandleHello (struct ofl_msg_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
ofl_err	HandleFeaturesReply (struct ofl_msg_features_reply *msg, Ptr< RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleError (struct ofl_msg_error *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleGetConfigReply (struct ofl_msg_get_config_reply *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleFlowRemoved (struct ofl_msg_flow_removed *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandlePortStatus (struct ofl_msg_port_status *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleAsyncReply (struct ofl_msg_async_config *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleMultipartReply (struct ofl_msg_multipart_reply_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleRoleReply (struct ofl_msg_role_request *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
virtual ofl_err	HandleQueueGetConfigReply (struct ofl_msg_queue_get_config_reply *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Called when an OpenFlow message is received from a switch. More...
Protected Member Functions inherited from ns3::Application
void	DoInitialize () override
	Initialize() implementation. More...
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...
virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::map< DpPortPair_t, Ipv4Address >	DpPortIpMap_t
	Map saving <DpPortPair_t / IPv4 address> More...
typedef std::pair< uint64_t, uint32_t >	DpPortPair_t
	A pair identifying OpenFlow datapath id and port number. More...
typedef std::map< Ipv4Address, Mac48Address >	IpMacMap_t
	Map saving <IPv4 address / MAC address> More...

Private Member Functions
Ptr< Packet >	CreateArpReply (Mac48Address srcMac, Ipv4Address srcIp, Mac48Address dstMac, Ipv4Address dstIp)
	Create a Packet with an ARP reply, encapsulated inside of an Ethernet frame (with header and trailer. More...
Ipv4Address	ExtractIpv4Address (uint32_t oxm_of, struct ofl_match *match)
	Extract an IPv4 address from packet match. More...
Mac48Address	GetArpEntry (Ipv4Address ip)
	Perform ARP resolution. More...
Ipv4Address	GetTunnelEndpoint (uint64_t dpId, uint32_t portNo)
	Perform tunnel endpoint resolution. More...

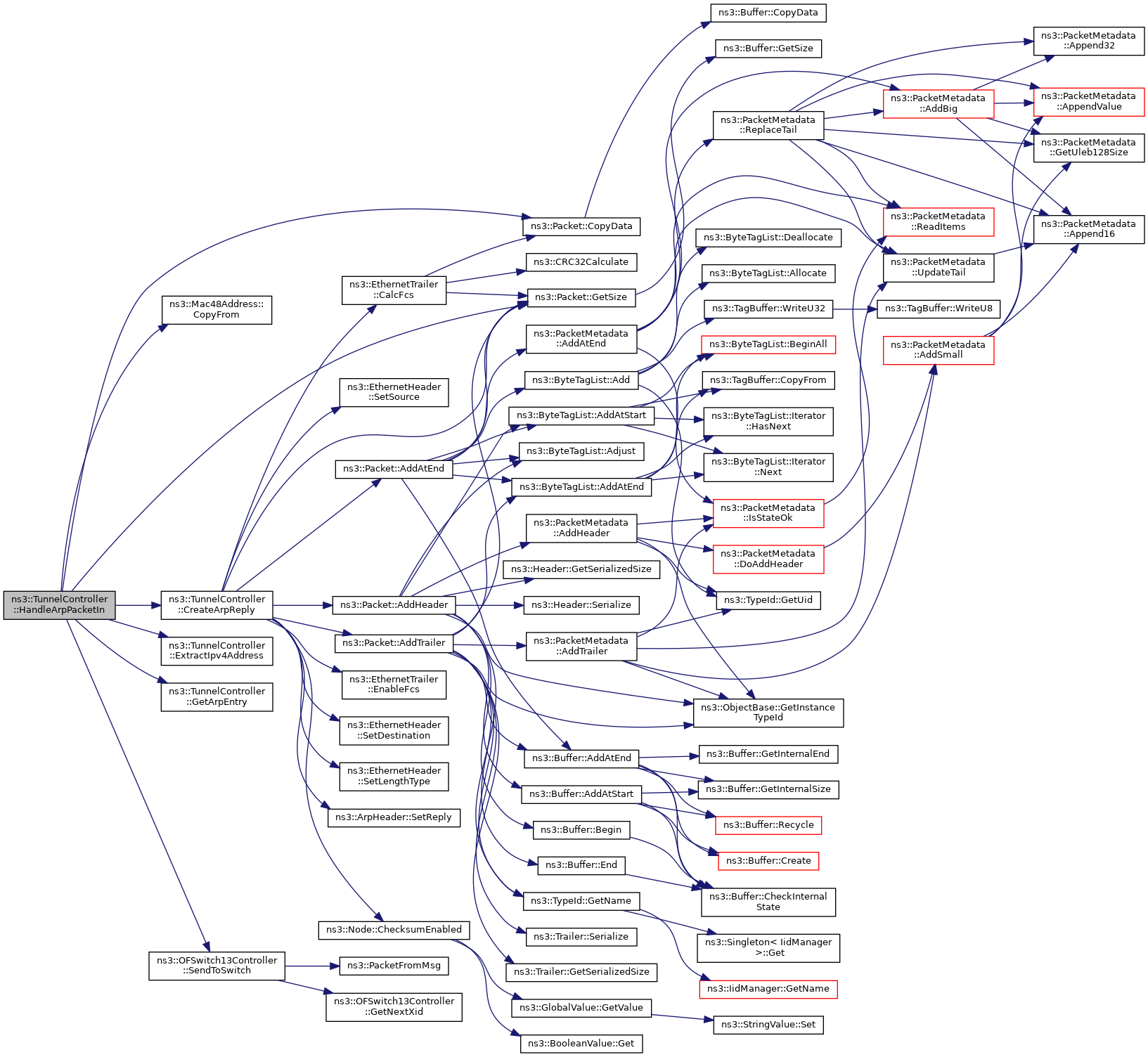

ofl_err	HandleArpPacketIn (struct ofl_msg_packet_in *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)
	Handle packet-in messages sent from switch with ARP message. More...

Private Attributes
IpMacMap_t	m_arpTable
	ARP resolution table. More...
DpPortIpMap_t	m_endpointTable
	Tunnel endpoint resolution table. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...
typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...
EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...
Time	m_startTime
	The simulation time that the application will start. More...
EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...
Time	m_stopTime
	The simulation time that the application will end. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This controller is responsible for installing the forwarding rules on the switches.

For packets entering the switches coming from the hosts, the controller sets the tunnel id and send packets to the logical port, where they will be encapsulated withing GTP-U/UDP/IP protocols. For packets entering the switches coming from the logical port, the controller forwards the packets to the host.

Definition at line 41 of file tunnel-controller.h.

Member Typedef Documentation

DpPortIpMap_t

typedef std::map<DpPortPair_t, Ipv4Address> ns3::TunnelController::DpPortIpMap_t

private

Map saving <DpPortPair_t / IPv4 address>

Definition at line 140 of file tunnel-controller.h.

DpPortPair_t

typedef std::pair<uint64_t, uint32_t> ns3::TunnelController::DpPortPair_t

private

A pair identifying OpenFlow datapath id and port number.

Definition at line 137 of file tunnel-controller.h.

IpMacMap_t

typedef std::map<Ipv4Address, Mac48Address> ns3::TunnelController::IpMacMap_t

private

Map saving <IPv4 address / MAC address>

Definition at line 143 of file tunnel-controller.h.

Constructor & Destructor Documentation

TunnelController()

ns3::TunnelController::TunnelController

(

)

Default constructor.

Definition at line 30 of file tunnel-controller.cc.

References NS_LOG_FUNCTION.

~TunnelController()

ns3::TunnelController::~TunnelController ( )

override

Dummy destructor, see DoDispose.

Definition at line 35 of file tunnel-controller.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

CreateArpReply()

Ptr< Packet > ns3::TunnelController::CreateArpReply ( Mac48Address  srcMac, Ipv4Address  srcIp, Mac48Address  dstMac, Ipv4Address  dstIp  )

private

Create a Packet with an ARP reply, encapsulated inside of an Ethernet frame (with header and trailer.

Parameters

srcMac	Source MAC address.
srcIp	Source IP address.
dstMac	Destination MAC address.
dstIp	Destination IP address.

Returns

The ns3 Ptr<Packet> with the ARP reply.

Definition at line 332 of file tunnel-controller.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::EthernetTrailer::CalcFcs(), ns3::Node::ChecksumEnabled(), ns3::EthernetTrailer::EnableFcs(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, ns3::ArpL3Protocol::PROT_NUMBER, ns3::EthernetHeader::SetDestination(), ns3::EthernetHeader::SetLengthType(), ns3::ArpHeader::SetReply(), and ns3::EthernetHeader::SetSource().

Referenced by HandleArpPacketIn().

Here is the call graph for this function:

Here is the caller graph for this function:

DoDispose()

void ns3::TunnelController::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

Reimplemented from ns3::Application.

Definition at line 84 of file tunnel-controller.cc.

References ns3::OFSwitch13Controller::DoDispose(), m_arpTable, m_endpointTable, and NS_LOG_FUNCTION.

Here is the call graph for this function:

ExtractIpv4Address()

Ipv4Address ns3::TunnelController::ExtractIpv4Address ( uint32_t  oxm_of, struct ofl_match *  match  )

private

Extract an IPv4 address from packet match.

Parameters

oxm_of	The OXM_IF_* IPv4 field.
match	The ofl_match structure pointer.

Returns

The IPv4 address.

Definition at line 312 of file tunnel-controller.cc.

References NS_ABORT_MSG.

Referenced by HandleArpPacketIn(), and HandlePacketIn().

Here is the caller graph for this function:

GetArpEntry()

Mac48Address ns3::TunnelController::GetArpEntry ( Ipv4Address  ip )

private

Perform ARP resolution.

Parameters

ip	The Ipv4Address to search.

Returns

The MAC address for this ip.

Definition at line 203 of file tunnel-controller.cc.

References m_arpTable, NS_ABORT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by HandleArpPacketIn(), and HandlePacketIn().

Here is the caller graph for this function:

GetTunnelEndpoint()

Ipv4Address ns3::TunnelController::GetTunnelEndpoint ( uint64_t  dpId, uint32_t  portNo  )

private

Perform tunnel endpoint resolution.

Parameters

dpId	The datapath ID.
portNo	The port number.

Returns

The IPv4 address of tunnel endpoint.

Definition at line 218 of file tunnel-controller.cc.

References m_endpointTable, NS_ABORT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by HandlePacketIn().

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::TunnelController::GetTypeId ( )

static

Register this type.

Returns

The object TypeId.

Definition at line 41 of file tunnel-controller.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

HandleArpPacketIn()

ofl_err ns3::TunnelController::HandleArpPacketIn ( struct ofl_msg_packet_in *  msg, Ptr< const RemoteSwitch >  swtch, uint32_t  xid  )

private

Handle packet-in messages sent from switch with ARP message.

Parameters

msg	The packet-in message.
swtch	The switch information.
xid	Transaction id.

Returns

0 if everything's ok, otherwise an error number.

Definition at line 234 of file tunnel-controller.cc.

References check-style-clang-format::action, ns3::ArpHeader::ARP_TYPE_REQUEST, ns3::Packet::CopyData(), ns3::Mac48Address::CopyFrom(), CreateArpReply(), ExtractIpv4Address(), GetArpEntry(), ns3::Packet::GetSize(), NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and ns3::OFSwitch13Controller::SendToSwitch().

Referenced by HandlePacketIn().

Here is the call graph for this function:

Here is the caller graph for this function:

HandlePacketIn()

ofl_err ns3::TunnelController::HandlePacketIn ( struct ofl_msg_packet_in *  msg, Ptr< const RemoteSwitch >  swtch, uint32_t  xid  )

overrideprotectedvirtual

Handle a packet in message sent by the switch to this controller.

Note

Inherited from OFSwitch13Controller.

Parameters

msg	The OpenFlow received message.
swtch	The remote switch metadata.
xid	The transaction id from the request message.

Returns

0 if everything's ok, otherwise an error number.

Reimplemented from ns3::OFSwitch13Controller.

Definition at line 111 of file tunnel-controller.cc.

References second::cmd, ns3::OFSwitch13Controller::DpctlExecute(), ExtractIpv4Address(), ns3::Ipv4Address::Get(), GetArpEntry(), GetTunnelEndpoint(), HandleArpPacketIn(), NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and ns3::ArpL3Protocol::PROT_NUMBER.

Here is the call graph for this function:

HandshakeSuccessful()

void ns3::TunnelController::HandshakeSuccessful ( Ptr< const RemoteSwitch >  swtch )

overrideprotectedvirtual

Function invoked after a successfully handshake procedure between this controller and a remote switch.

Derived classes can override this function to implement any relevant logic, as sending initial configuration messages to the switch.

Parameters

swtch

The remote switch.

Reimplemented from ns3::OFSwitch13Controller.

Definition at line 94 of file tunnel-controller.cc.

References ns3::OFSwitch13Controller::DpctlExecute(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

SaveArpEntry()

void ns3::TunnelController::SaveArpEntry	(	Ipv4Address	ipAddr,
		Mac48Address	macAddr
	)

Save the pair IP / MAC address in ARP table.

Parameters

ipAddr	The IPv4 address.
macAddr	The MAC address.

Definition at line 51 of file tunnel-controller.cc.

References m_arpTable, NS_ABORT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

SaveTunnelEndpoint()

void ns3::TunnelController::SaveTunnelEndpoint	(	uint64_t	dpId,
		uint32_t	portNo,
		Ipv4Address	ipAddr
	)

Save the pair datapath ID + port no / IP address in tunnel endpoint table.

Parameters

dpId	The datapath ID.
portNo	The port number.
ipAddr	The IPv4 address of tunnel endpoint.

Definition at line 67 of file tunnel-controller.cc.

References m_endpointTable, NS_ABORT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Member Data Documentation

m_arpTable

IpMacMap_t ns3::TunnelController::m_arpTable

private

ARP resolution table.

Definition at line 145 of file tunnel-controller.h.

Referenced by DoDispose(), GetArpEntry(), and SaveArpEntry().

m_endpointTable

DpPortIpMap_t ns3::TunnelController::m_endpointTable

private

Tunnel endpoint resolution table.

Definition at line 146 of file tunnel-controller.h.

Referenced by DoDispose(), GetTunnelEndpoint(), and SaveTunnelEndpoint().

---

The documentation for this class was generated from the following files:

• contrib/ofswitch13/examples/ofswitch13-logical-port/tunnel-controller.h
• contrib/ofswitch13/examples/ofswitch13-logical-port/tunnel-controller.cc
