This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63. More...

#include "mac-messages.h"

Inheritance diagram for ns3::DsaRsp:

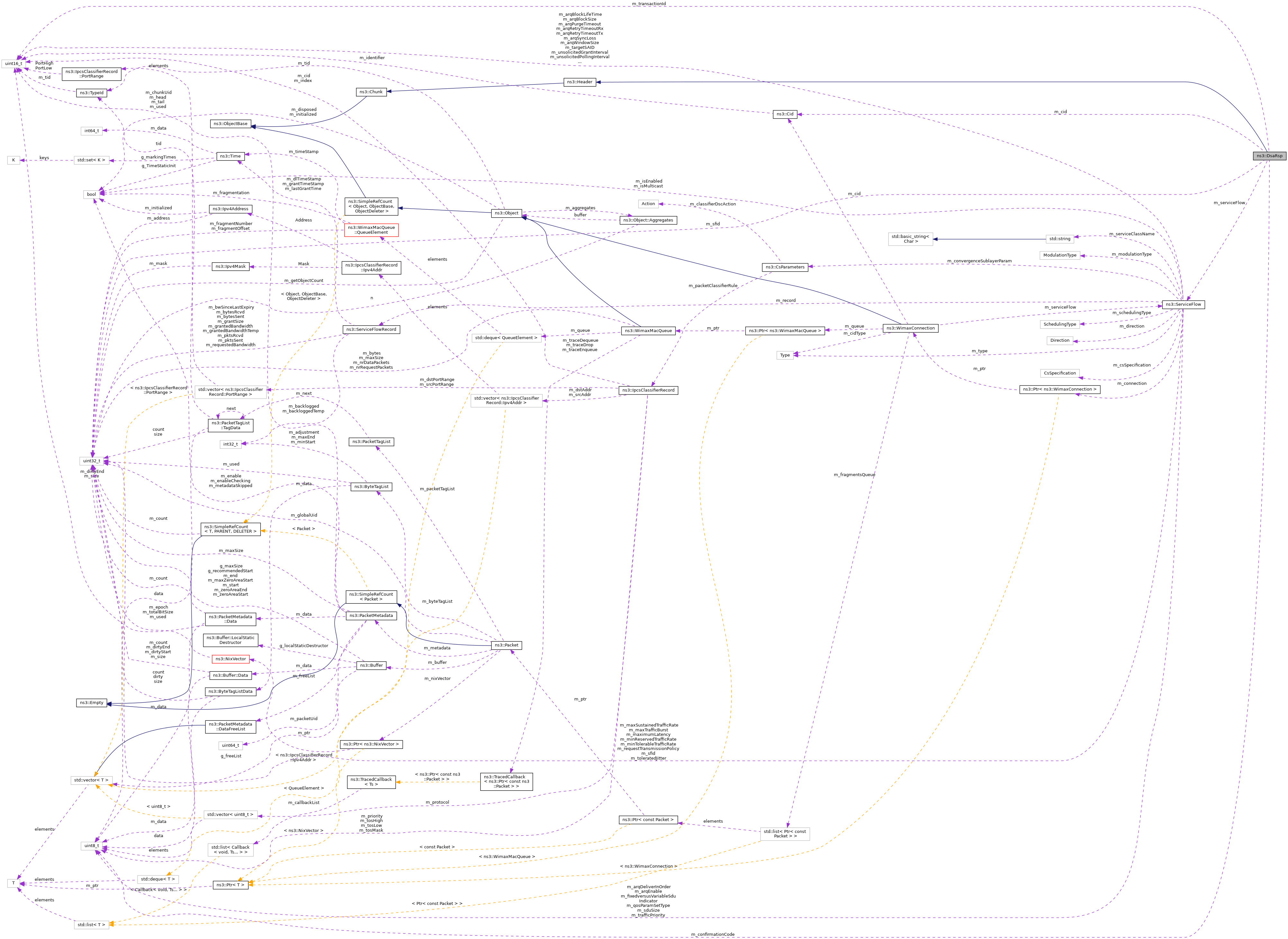

Collaboration diagram for ns3::DsaRsp:

Public Member Functions
	DsaRsp ()

	~DsaRsp () override

uint32_t	Deserialize (Buffer::Iterator start) override

Cid	GetCid () const

uint16_t	GetConfirmationCode () const

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

std::string	GetName () const

uint32_t	GetSerializedSize () const override

ServiceFlow	GetServiceFlow () const

uint32_t	GetSfid () const

uint16_t	GetTransactionId () const

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetCid (Cid cid)
	set the connection identifier More...

void	SetConfirmationCode (uint16_t confirmationCode)
	set the confirmation code More...

void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message More...

void	SetSfid (uint32_t sfid)
	set the service flow identifier More...

void	SetTransactionId (uint16_t transactionId)
	set the transaction ID More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Cid	m_cid
	CID. More...

uint8_t	m_confirmationCode
	confirmation code More...

ServiceFlow	m_serviceFlow
	service flow More...

uint32_t	m_sfid
	SFID. More...

uint16_t	m_transactionId
	transaction ID More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63.

Introspection did not find any typical Config paths.

*   0             7             15            23
*  +-------------+-------------+-------------+
*  |Mngt msg type|       Transaction ID      |
*  +-------------+-------------+-------------+
*  | Conf Code   | Service Flow TLV          |
*  +~~~~~~~~~~~~~+~~~~~~~~~~~~~+~~~~~~~~~~~~~+
*

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 312 bytes (on a 64-bit architecture).

Definition at line 489 of file mac-messages.h.

Constructor & Destructor Documentation

◆ DsaRsp()

ns3::DsaRsp::DsaRsp ( )

Definition at line 641 of file mac-messages.cc.

◆ ~DsaRsp()

ns3::DsaRsp::~DsaRsp ( )

override

Definition at line 649 of file mac-messages.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DsaRsp::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 758 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

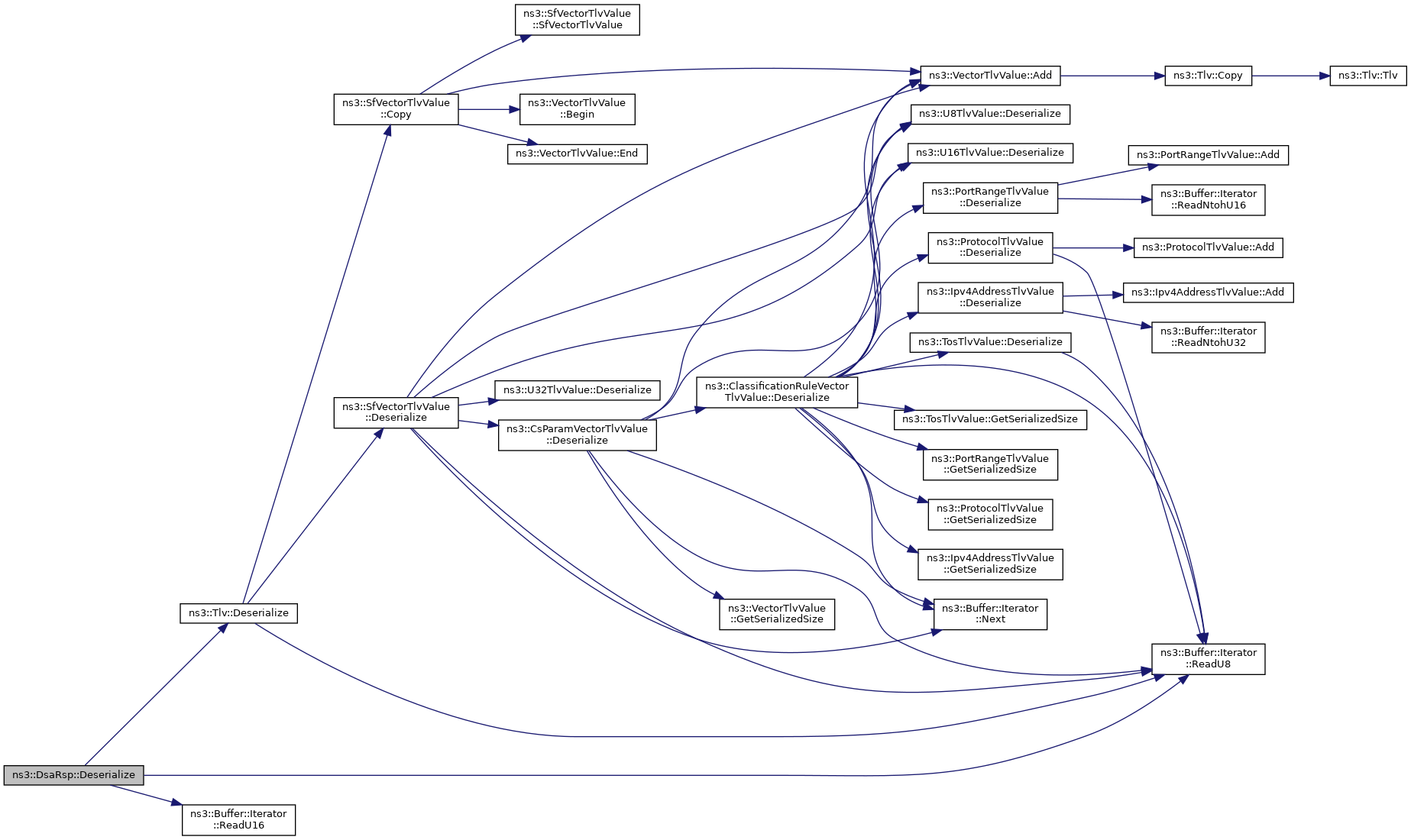

Here is the call graph for this function:

◆ GetCid()

Cid ns3::DsaRsp::GetCid ( ) const

Returns: the connection identifier

Definition at line 708 of file mac-messages.cc.

References m_cid.

◆ GetConfirmationCode()

uint16_t ns3::DsaRsp::GetConfirmationCode ( ) const

Returns: the confirmation code

Definition at line 684 of file mac-messages.cc.

References m_confirmationCode.

◆ GetInstanceTypeId()

TypeId ns3::DsaRsp::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 728 of file mac-messages.cc.

References GetTypeId().

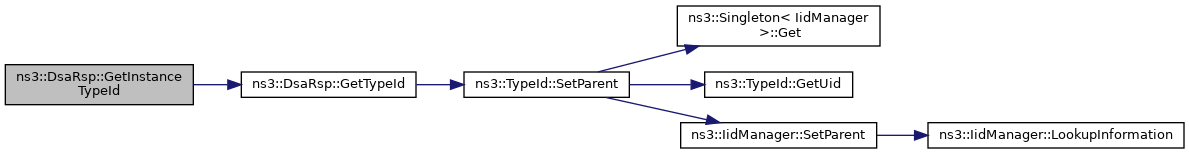

Here is the call graph for this function:

◆ GetName()

std::string ns3::DsaRsp::GetName ( ) const

Returns: the service name

Definition at line 714 of file mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::DsaRsp::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 742 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

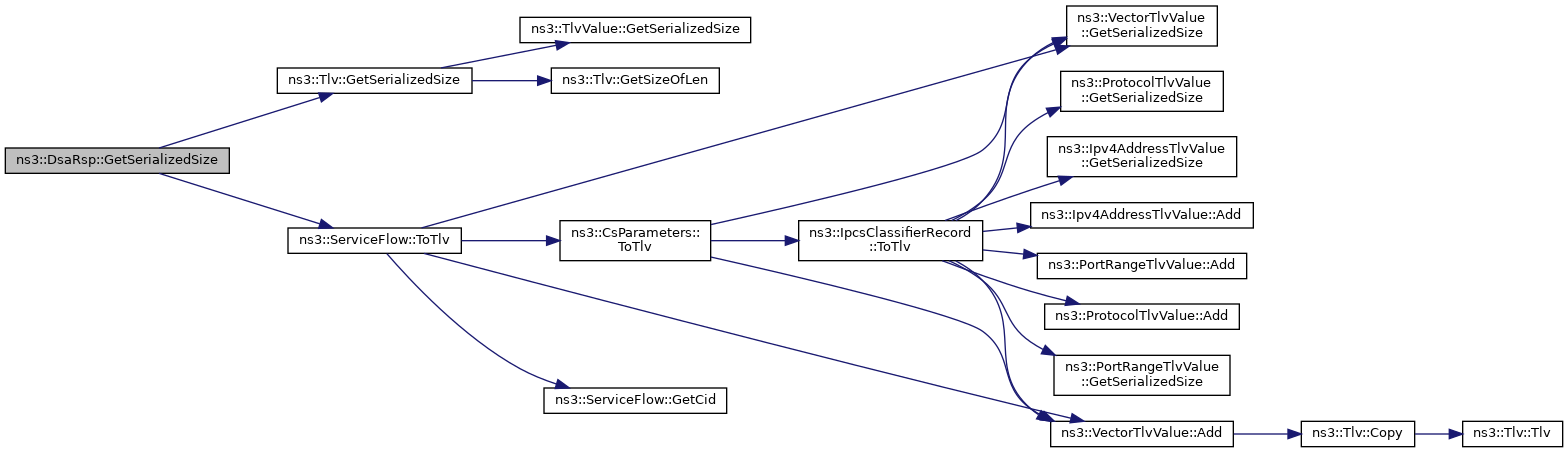

Here is the call graph for this function:

◆ GetServiceFlow()

ServiceFlow ns3::DsaRsp::GetServiceFlow ( ) const

Returns: the service flow requested by this message

Definition at line 666 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

◆ GetSfid()

uint32_t ns3::DsaRsp::GetSfid ( ) const

Returns: the service flow identifier

Definition at line 696 of file mac-messages.cc.

References m_sfid.

◆ GetTransactionId()

uint16_t ns3::DsaRsp::GetTransactionId ( ) const

Returns: the transaction ID

Definition at line 660 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::DsaRsp::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 720 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

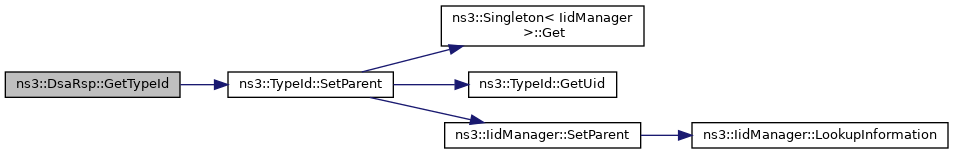

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::DsaRsp::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 734 of file mac-messages.cc.

References m_cid, m_confirmationCode, m_sfid, and m_transactionId.

◆ Serialize()

void ns3::DsaRsp::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 748 of file mac-messages.cc.

References m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), two-ray-to-three-gpp-ch-calibration::start, ns3::ServiceFlow::ToTlv(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

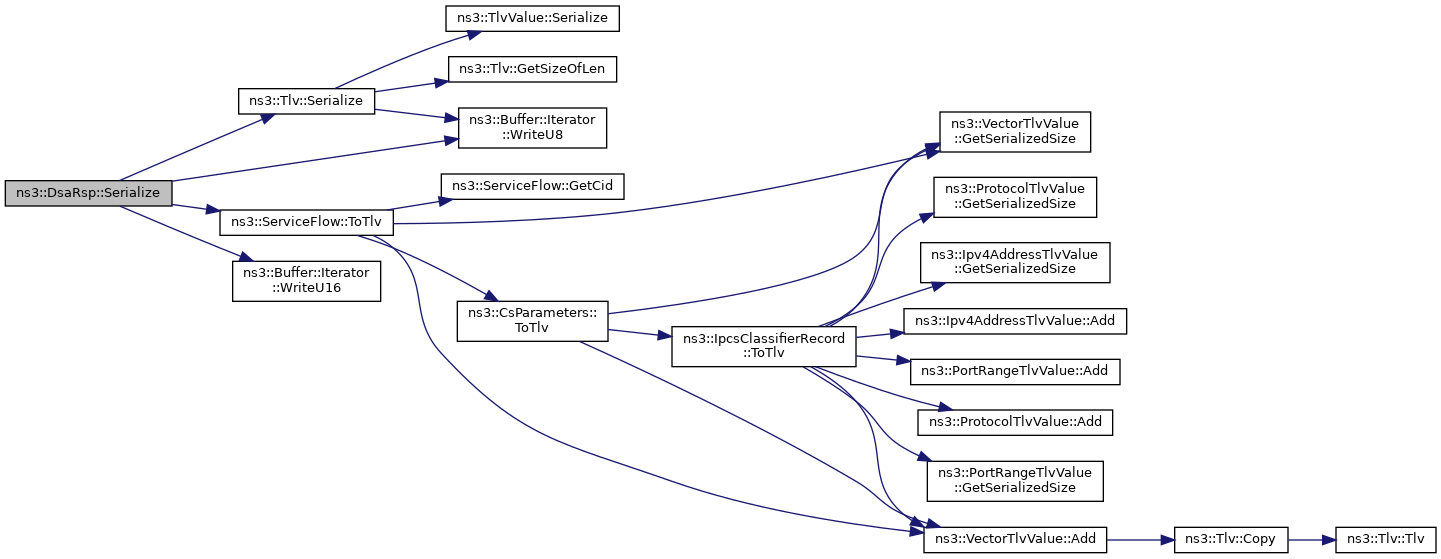

Here is the call graph for this function:

◆ SetCid()

void ns3::DsaRsp::SetCid ( Cid cid )

set the connection identifier

Parameters

cid	the connection identifier

Definition at line 702 of file mac-messages.cc.

References m_cid.

◆ SetConfirmationCode()

void ns3::DsaRsp::SetConfirmationCode ( uint16_t confirmationCode )

set the confirmation code

Parameters

confirmationCode

Definition at line 678 of file mac-messages.cc.

References m_confirmationCode.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

Here is the caller graph for this function:

◆ SetServiceFlow()

void ns3::DsaRsp::SetServiceFlow ( ServiceFlow sf )

specify a service flow to be requested by this message

Parameters

sf	the service flow

Definition at line 672 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

Here is the caller graph for this function:

◆ SetSfid()

void ns3::DsaRsp::SetSfid ( uint32_t sfid )

set the service flow identifier

Parameters

sfid	the service flow identifier

Definition at line 690 of file mac-messages.cc.

References m_sfid.

◆ SetTransactionId()

void ns3::DsaRsp::SetTransactionId ( uint16_t transactionId )

set the transaction ID

Parameters

transactionId

Definition at line 654 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::BsServiceFlowManager::CreateDsaRsp().

Here is the caller graph for this function:

Member Data Documentation

◆ m_cid

Cid ns3::DsaRsp::m_cid

private

CID.

Definition at line 563 of file mac-messages.h.

Referenced by GetCid(), Print(), and SetCid().

◆ m_confirmationCode

uint8_t ns3::DsaRsp::m_confirmationCode

private

confirmation code

Definition at line 559 of file mac-messages.h.

Referenced by Deserialize(), GetConfirmationCode(), Print(), Serialize(), and SetConfirmationCode().

◆ m_serviceFlow

ServiceFlow ns3::DsaRsp::m_serviceFlow

private

service flow

Definition at line 561 of file mac-messages.h.

Referenced by Deserialize(), GetSerializedSize(), GetServiceFlow(), Serialize(), and SetServiceFlow().

◆ m_sfid

uint32_t ns3::DsaRsp::m_sfid

private

SFID.

Definition at line 562 of file mac-messages.h.

Referenced by GetSfid(), Print(), and SetSfid().

◆ m_transactionId

uint16_t ns3::DsaRsp::m_transactionId

private

transaction ID

Definition at line 558 of file mac-messages.h.

Referenced by Deserialize(), GetTransactionId(), Print(), Serialize(), and SetTransactionId().

The documentation for this class was generated from the following files:

src/wimax/model/mac-messages.h
src/wimax/model/mac-messages.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DsaRsp()

◆ ~DsaRsp()

Member Function Documentation

◆ Deserialize()

◆ GetCid()

◆ GetConfirmationCode()

◆ GetInstanceTypeId()

◆ GetName()

◆ GetSerializedSize()

◆ GetServiceFlow()

◆ GetSfid()

◆ GetTransactionId()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetCid()

◆ SetConfirmationCode()

◆ SetServiceFlow()

◆ SetSfid()

◆ SetTransactionId()

Member Data Documentation

◆ m_cid

◆ m_confirmationCode

◆ m_serviceFlow

◆ m_sfid

◆ m_transactionId
