The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network. More...

Collaboration diagram for RoutingStats:

Public Member Functions
	RoutingStats ()
	Constructor. More...

uint32_t	GetCumulativeRxBytes () const
	Returns the cumulative number of bytes received. More...

uint32_t	GetCumulativeRxPkts () const
	Returns the cumulative count of packets received. More...

uint32_t	GetCumulativeTxBytes () const
	Returns the cumulative number of bytes transmitted. More...

uint32_t	GetCumulativeTxPkts () const
	Returns the cumulative number of packets transmitted. More...

uint32_t	GetRxBytes () const
	Returns the number of bytes received. More...

uint32_t	GetRxPkts () const
	Returns the count of packets received. More...

uint32_t	GetTxBytes () const
	Returns the number of bytes transmitted. More...

uint32_t	GetTxPkts () const
	Returns the number of packets transmitted. More...

void	IncRxBytes (uint32_t rxBytes)
	Increments the number of (application-data) bytes received, not including MAC/PHY overhead. More...

void	IncRxPkts ()
	Increments the count of packets received. More...

void	IncTxBytes (uint32_t txBytes)
	Increment the number of bytes transmitted. More...

void	IncTxPkts ()
	Increment the count of packets transmitted. More...

void	SetRxBytes (uint32_t rxBytes)
	Sets the number of bytes received. More...

void	SetRxPkts (uint32_t rxPkts)
	Sets the number of packets received. More...

void	SetTxBytes (uint32_t txBytes)
	Sets the number of bytes transmitted. More...

void	SetTxPkts (uint32_t txPkts)
	Sets the number of packets transmitted. More...

Private Attributes
uint32_t	m_cumulativeRxBytes
	cumulative receive bytes More...

uint32_t	m_cumulativeRxPkts
	cumulative receive packets More...

uint32_t	m_cumulativeTxBytes
	cumulative transmit bytes More...

uint32_t	m_cumulativeTxPkts
	cumulative transmit packets More...

uint32_t	m_RxBytes
	receive bytes More...

uint32_t	m_RxPkts
	receive packets More...

uint32_t	m_TxBytes
	transmit bytes More...

uint32_t	m_TxPkts
	transmit packets More...

Detailed Description

The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network.

Definition at line 135 of file vanet-routing-compare.cc.

Constructor & Destructor Documentation

◆ RoutingStats()

RoutingStats::RoutingStats ( )

Constructor.

Definition at line 249 of file vanet-routing-compare.cc.

Member Function Documentation

◆ GetCumulativeRxBytes()

uint32_t RoutingStats::GetCumulativeRxBytes ( ) const

Returns the cumulative number of bytes received.

Returns: the cumulative number of bytes received

Definition at line 268 of file vanet-routing-compare.cc.

References m_cumulativeRxBytes.

Referenced by VanetRoutingExperiment::ProcessOutputs().

Here is the caller graph for this function:

◆ GetCumulativeRxPkts()

uint32_t RoutingStats::GetCumulativeRxPkts ( ) const

Returns the cumulative count of packets received.

Returns: the cumulative count of packets received

Definition at line 280 of file vanet-routing-compare.cc.

References m_cumulativeRxPkts.

◆ GetCumulativeTxBytes()

uint32_t RoutingStats::GetCumulativeTxBytes ( ) const

Returns the cumulative number of bytes transmitted.

Returns: the cumulative number of bytes transmitted

Definition at line 318 of file vanet-routing-compare.cc.

References m_cumulativeTxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput(), and VanetRoutingExperiment::ProcessOutputs().

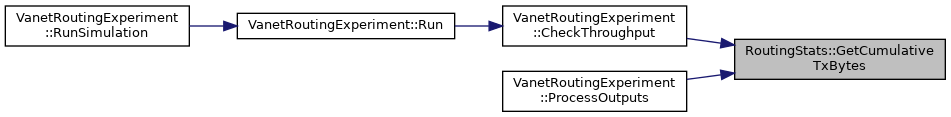

Here is the caller graph for this function:

◆ GetCumulativeTxPkts()

uint32_t RoutingStats::GetCumulativeTxPkts ( ) const

Returns the cumulative number of packets transmitted.

Returns: the cumulative number of packets transmitted

Definition at line 330 of file vanet-routing-compare.cc.

References m_cumulativeTxPkts.

◆ GetRxBytes()

uint32_t RoutingStats::GetRxBytes ( ) const

Returns the number of bytes received.

Returns: the number of bytes received

Definition at line 262 of file vanet-routing-compare.cc.

References m_RxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

◆ GetRxPkts()

uint32_t RoutingStats::GetRxPkts ( ) const

Returns the count of packets received.

Returns: the count of packets received

Definition at line 274 of file vanet-routing-compare.cc.

References m_RxPkts.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

◆ GetTxBytes()

uint32_t RoutingStats::GetTxBytes ( ) const

Returns the number of bytes transmitted.

Returns: the number of bytes transmitted

Definition at line 312 of file vanet-routing-compare.cc.

References m_TxBytes.

◆ GetTxPkts()

uint32_t RoutingStats::GetTxPkts ( ) const

Returns the number of packets transmitted.

Returns: the number of packets transmitted

Definition at line 324 of file vanet-routing-compare.cc.

References m_TxPkts.

◆ IncRxBytes()

void RoutingStats::IncRxBytes ( uint32_t rxBytes )

Increments the number of (application-data) bytes received, not including MAC/PHY overhead.

Parameters

rxBytes the number of bytes received

Definition at line 286 of file vanet-routing-compare.cc.

References m_cumulativeRxBytes, and m_RxBytes.

Referenced by RoutingHelper::ReceiveRoutingPacket().

Here is the caller graph for this function:

◆ IncRxPkts()

void RoutingStats::IncRxPkts ( )

Increments the count of packets received.

Definition at line 293 of file vanet-routing-compare.cc.

References m_cumulativeRxPkts, and m_RxPkts.

Referenced by RoutingHelper::ReceiveRoutingPacket().

Here is the caller graph for this function:

◆ IncTxBytes()

void RoutingStats::IncTxBytes ( uint32_t txBytes )

Increment the number of bytes transmitted.

Parameters

txBytes the number of additional bytes transmitted

Definition at line 336 of file vanet-routing-compare.cc.

References m_cumulativeTxBytes, and m_TxBytes.

Referenced by RoutingHelper::OnOffTrace().

Here is the caller graph for this function:

◆ IncTxPkts()

void RoutingStats::IncTxPkts ( )

Increment the count of packets transmitted.

Definition at line 343 of file vanet-routing-compare.cc.

References m_cumulativeTxPkts, and m_TxPkts.

◆ SetRxBytes()

void RoutingStats::SetRxBytes ( uint32_t rxBytes )

Sets the number of bytes received.

Parameters

rxBytes the number of bytes received

Definition at line 300 of file vanet-routing-compare.cc.

References m_RxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

◆ SetRxPkts()

void RoutingStats::SetRxPkts ( uint32_t rxPkts )

Sets the number of packets received.

Parameters

rxPkts the number of packets received

Definition at line 306 of file vanet-routing-compare.cc.

References m_RxPkts.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

◆ SetTxBytes()

void RoutingStats::SetTxBytes ( uint32_t txBytes )

Sets the number of bytes transmitted.

Parameters

txBytes the number of bytes transmitted

Definition at line 350 of file vanet-routing-compare.cc.

References m_TxBytes.

◆ SetTxPkts()

void RoutingStats::SetTxPkts ( uint32_t txPkts )

Sets the number of packets transmitted.

Parameters

txPkts the number of packets transmitted

Definition at line 356 of file vanet-routing-compare.cc.

References m_TxPkts.

Member Data Documentation

◆ m_cumulativeRxBytes

uint32_t RoutingStats::m_cumulativeRxBytes

private

cumulative receive bytes

Definition at line 240 of file vanet-routing-compare.cc.

Referenced by GetCumulativeRxBytes(), and IncRxBytes().

◆ m_cumulativeRxPkts

uint32_t RoutingStats::m_cumulativeRxPkts

private

cumulative receive packets

Definition at line 242 of file vanet-routing-compare.cc.

Referenced by GetCumulativeRxPkts(), and IncRxPkts().

◆ m_cumulativeTxBytes

uint32_t RoutingStats::m_cumulativeTxBytes

private

cumulative transmit bytes

Definition at line 244 of file vanet-routing-compare.cc.

Referenced by GetCumulativeTxBytes(), and IncTxBytes().

◆ m_cumulativeTxPkts

uint32_t RoutingStats::m_cumulativeTxPkts

private

cumulative transmit packets

Definition at line 246 of file vanet-routing-compare.cc.

Referenced by GetCumulativeTxPkts(), and IncTxPkts().

◆ m_RxBytes

uint32_t RoutingStats::m_RxBytes

private

receive bytes

Definition at line 239 of file vanet-routing-compare.cc.

Referenced by GetRxBytes(), IncRxBytes(), and SetRxBytes().

◆ m_RxPkts

uint32_t RoutingStats::m_RxPkts

private

receive packets

Definition at line 241 of file vanet-routing-compare.cc.

Referenced by GetRxPkts(), IncRxPkts(), and SetRxPkts().

◆ m_TxBytes

uint32_t RoutingStats::m_TxBytes

private

transmit bytes

Definition at line 243 of file vanet-routing-compare.cc.

Referenced by GetTxBytes(), IncTxBytes(), and SetTxBytes().

◆ m_TxPkts

uint32_t RoutingStats::m_TxPkts

private

transmit packets

Definition at line 245 of file vanet-routing-compare.cc.

Referenced by GetTxPkts(), IncTxPkts(), and SetTxPkts().

The documentation for this class was generated from the following file:

src/wave/examples/vanet-routing-compare.cc
