Simple frame capture model test. More...

Inheritance diagram for TestSimpleFrameCaptureModel:

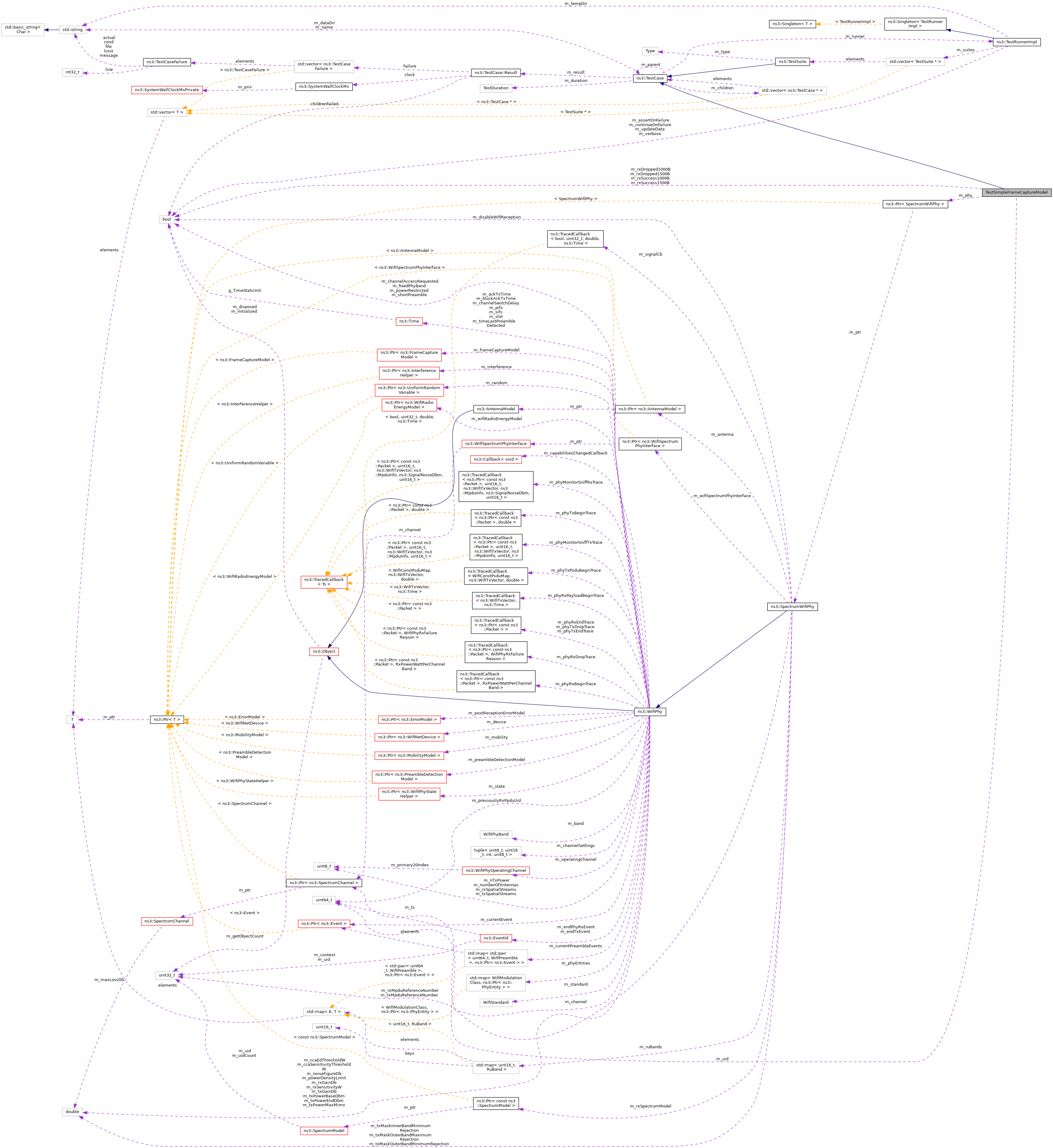

Collaboration diagram for TestSimpleFrameCaptureModel:

Public Member Functions
	TestSimpleFrameCaptureModel ()

	~TestSimpleFrameCaptureModel () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Protected Member Functions
void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown () override
	Implementation to do any local setup required for this TestCase. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

void	Expect1000BPacketDropped ()
	Verify whether 1000 bytes packet has been dropped. More...

void	Expect1000BPacketReceived ()
	Verify whether 1000 bytes packet has been received. More...

void	Expect1500BPacketDropped ()
	Verify whether 1500 bytes packet has been dropped. More...

void	Expect1500BPacketReceived ()
	Verify whether 1500 bytes packet has been received. More...

void	Reset ()
	Reset function. More...

void	RxDropped (Ptr< const Packet > p, WifiPhyRxfailureReason reason)
	RX dropped function. More...

void	RxSuccess (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	Spectrum wifi receive success function. More...

void	SendPacket (double rxPowerDbm, uint32_t packetSize)
	Send packet function. More...

Private Attributes
Ptr< SpectrumWifiPhy >	m_phy
	Phy. More...

bool	m_rxDropped1000B
	count dropped packets with 1000B payload More...

bool	m_rxDropped1500B
	count dropped packets with 1500B payload More...

bool	m_rxSuccess1000B
	count received packets with 1000B payload More...

bool	m_rxSuccess1500B
	count received packets with 1500B payload More...

uint64_t	m_uid
	the UID to use for the PPDU More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Simple frame capture model test.

Definition at line 1780 of file wifi-phy-reception-test.cc.

Constructor & Destructor Documentation

◆ TestSimpleFrameCaptureModel()

TestSimpleFrameCaptureModel::TestSimpleFrameCaptureModel ( )

Definition at line 1848 of file wifi-phy-reception-test.cc.

◆ ~TestSimpleFrameCaptureModel()

TestSimpleFrameCaptureModel::~TestSimpleFrameCaptureModel ( )

override

Definition at line 1956 of file wifi-phy-reception-test.cc.

References m_phy.

Member Function Documentation

◆ DoRun()

void TestSimpleFrameCaptureModel::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1995 of file wifi-phy-reception-test.cc.

References ns3::WifiPhy::AssignStreams(), Expect1000BPacketDropped(), Expect1000BPacketReceived(), Expect1500BPacketDropped(), Expect1500BPacketReceived(), m_phy, ns3::MicroSeconds(), Reset(), ns3::Seconds(), and SendPacket().

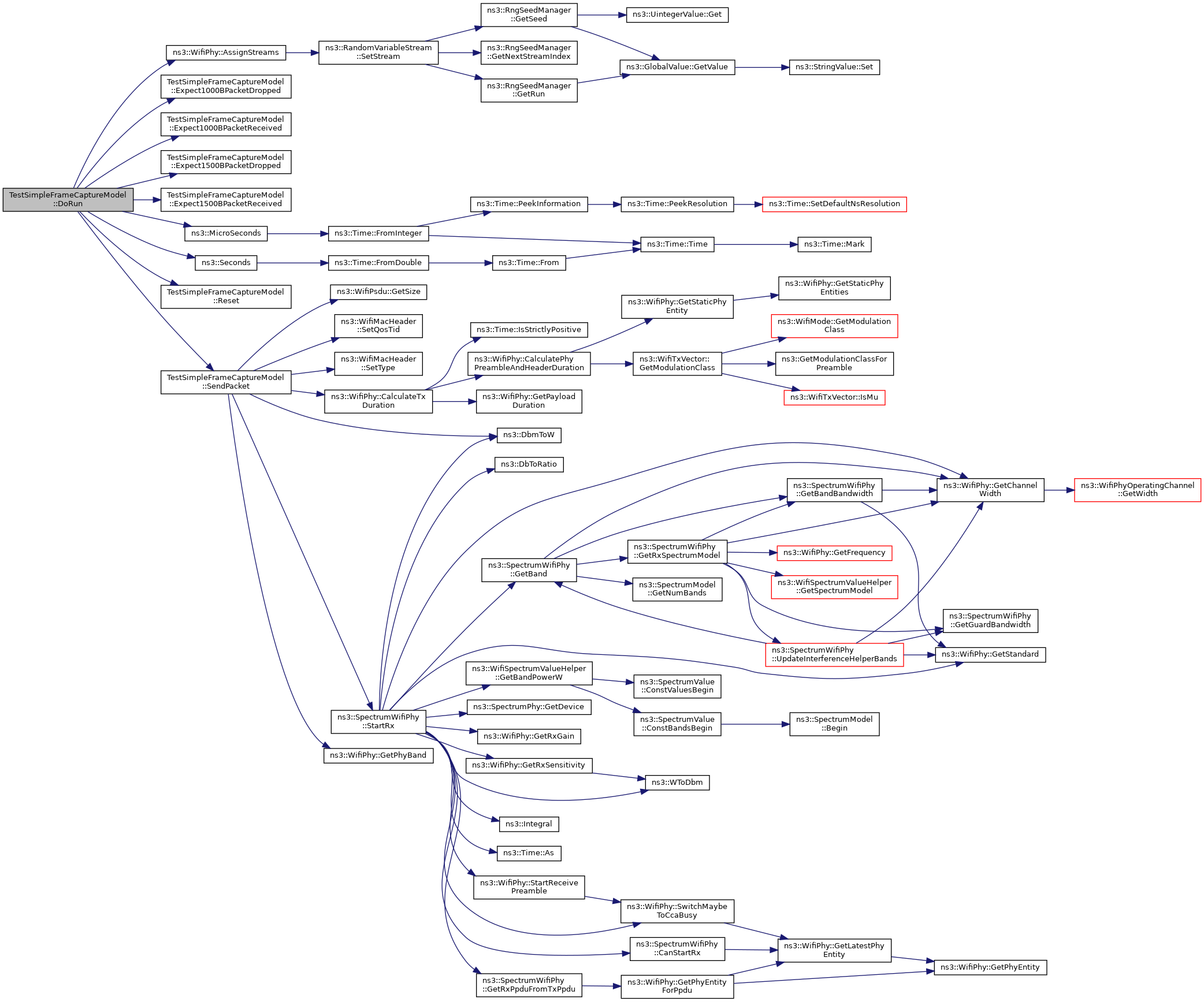

Here is the call graph for this function:

◆ DoSetup()

void TestSimpleFrameCaptureModel::DoSetup ( )

overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 1962 of file wifi-phy-reception-test.cc.

References CHANNEL_NUMBER, ns3::WifiPhy::ConfigureStandard(), m_phy, ns3::MakeCallback(), ns3::MicroSeconds(), RxDropped(), RxSuccess(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetFrameCaptureModel(), ns3::WifiPhy::SetInterferenceHelper(), ns3::WifiPhy::SetOperatingChannel(), ns3::WifiPhy::SetPreambleDetectionModel(), ns3::WifiPhy::SetReceiveOkCallback(), ns3::ObjectBase::TraceConnectWithoutContext(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ DoTeardown()

void TestSimpleFrameCaptureModel::DoTeardown ( )

overrideprotectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 1988 of file wifi-phy-reception-test.cc.

References ns3::Object::Dispose(), and m_phy.

Here is the call graph for this function:

◆ Expect1000BPacketDropped()

void TestSimpleFrameCaptureModel::Expect1000BPacketDropped ( )

private

Verify whether 1000 bytes packet has been dropped.

Definition at line 1945 of file wifi-phy-reception-test.cc.

References m_rxDropped1000B, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ Expect1000BPacketReceived()

void TestSimpleFrameCaptureModel::Expect1000BPacketReceived ( )

private

Verify whether 1000 bytes packet has been received.

Definition at line 1933 of file wifi-phy-reception-test.cc.

References m_rxSuccess1000B, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ Expect1500BPacketDropped()

void TestSimpleFrameCaptureModel::Expect1500BPacketDropped ( )

private

Verify whether 1500 bytes packet has been dropped.

Definition at line 1951 of file wifi-phy-reception-test.cc.

References m_rxDropped1500B, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ Expect1500BPacketReceived()

void TestSimpleFrameCaptureModel::Expect1500BPacketReceived ( )

private

Verify whether 1500 bytes packet has been received.

Definition at line 1939 of file wifi-phy-reception-test.cc.

References m_rxSuccess1500B, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ Reset()

void TestSimpleFrameCaptureModel::Reset ( )

private

Reset function.

Definition at line 1924 of file wifi-phy-reception-test.cc.

References m_rxDropped1000B, m_rxDropped1500B, m_rxSuccess1000B, and m_rxSuccess1500B.

Referenced by DoRun().

Here is the caller graph for this function:

◆ RxDropped()

void TestSimpleFrameCaptureModel::RxDropped	(	Ptr< const Packet >	p,
		WifiPhyRxfailureReason	reason
	)

private

RX dropped function.

Parameters

p	the packet
reason	the reason

Definition at line 1910 of file wifi-phy-reception-test.cc.

References ns3::Packet::GetSize(), m_rxDropped1000B, m_rxDropped1500B, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxSuccess()

void TestSimpleFrameCaptureModel::RxSuccess	(	Ptr< const WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)
