This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include "lte-test-harq.h"

Inheritance diagram for LenaHarqTestCase:

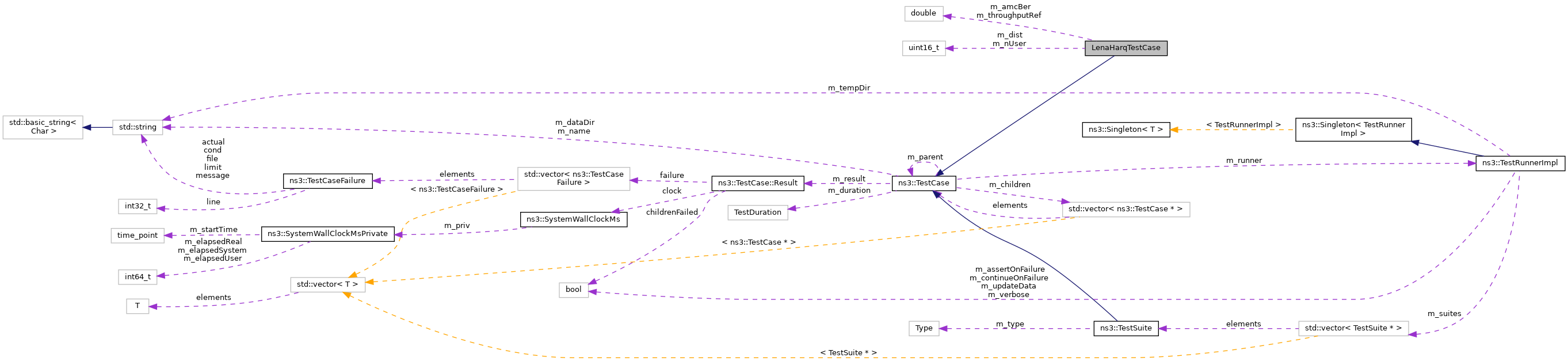

Collaboration diagram for LenaHarqTestCase:

Public Member Functions
	LenaHarqTestCase (uint16_t nUser, uint16_t dist, uint16_t tbSize, double amcBer, double thrRef)
	Constructor. More...

	~LenaHarqTestCase () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist, uint16_t tbSize)
	Build name string function. More...

Private Attributes
double	m_amcBer
	AMC bit error rate. More...

uint16_t	m_dist
	distance between nodes More...

uint16_t	m_nUser
	number of UE nodes More...

double	m_throughputRef
	throughput reference More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on ...

Definition at line 37 of file lte-test-harq.h.

Constructor & Destructor Documentation

◆ LenaHarqTestCase()

LenaHarqTestCase::LenaHarqTestCase	(	uint16_t	nUser,
		uint16_t	dist,
		uint16_t	tbSize,
		double	amcBer,
		double	thrRef
	)

Constructor.

Parameters

nUser	the number of UE nodes
dist	the distance between n odes
tbSize
amcBer	the AMC bit error rate
thrRef	the throughput reference

Definition at line 90 of file lte-test-harq.cc.

◆ ~LenaHarqTestCase()

LenaHarqTestCase::~LenaHarqTestCase ( )

override

Definition at line 103 of file lte-test-harq.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaHarqTestCase::BuildNameString	(	uint16_t	nUser,
		uint16_t	dist,
		uint16_t	tbSize
	)

staticprivate

Build name string function.

Parameters

nUser	number of UE nodes
dist	distance between nodes
tbSize

Returns: name string

Definition at line 83 of file lte-test-harq.cc.

◆ DoRun()

void LenaHarqTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignment is done in a RR fashion

Implements ns3::TestCase.

Definition at line 108 of file lte-test-harq.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_amcBer, m_dist, m_nUser, m_throughputRef, third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

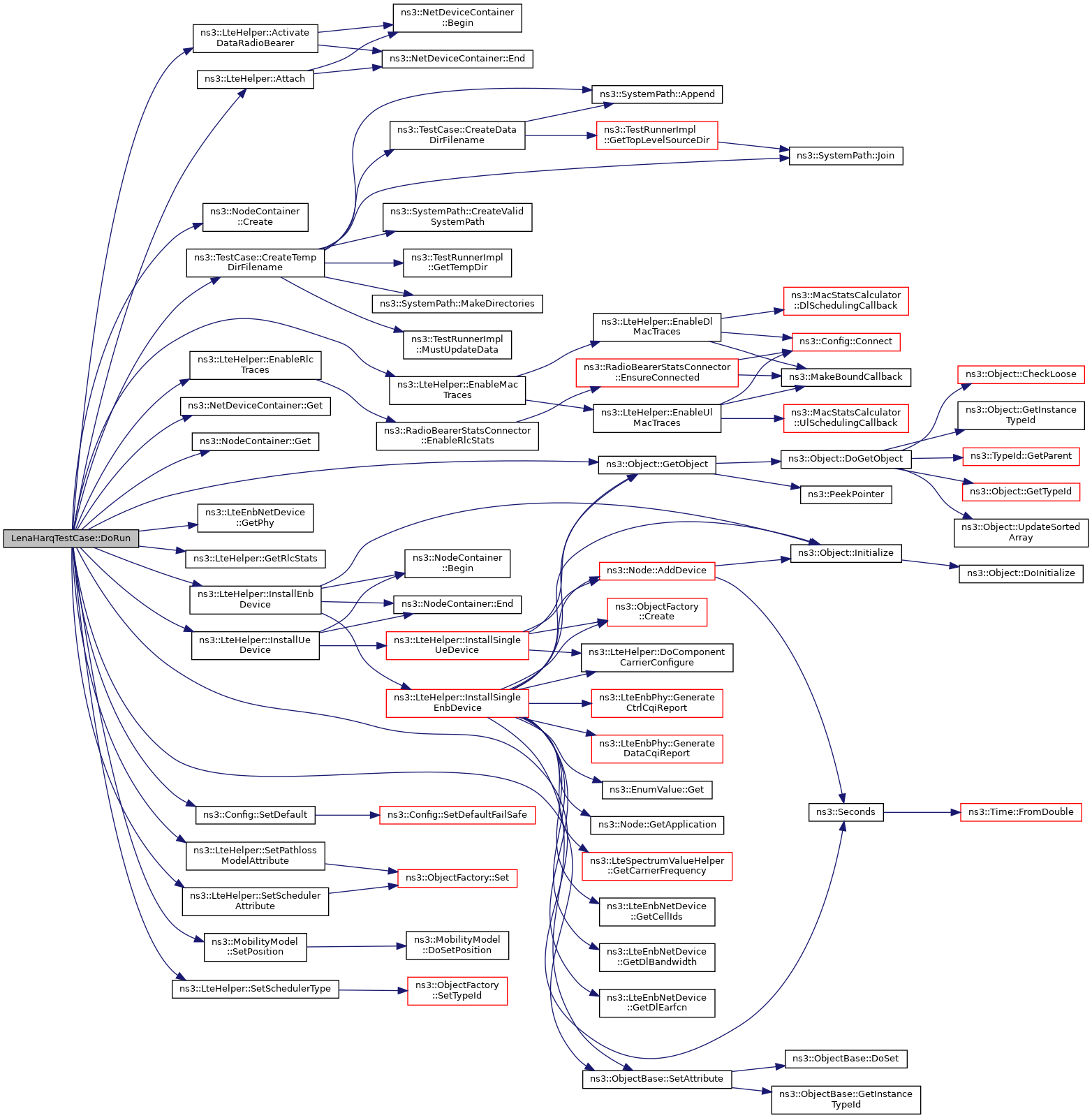

Here is the call graph for this function:

Member Data Documentation

◆ m_amcBer

double LenaHarqTestCase::m_amcBer

private

AMC bit error rate.

Definition at line 65 of file lte-test-harq.h.

Referenced by DoRun().

◆ m_dist

uint16_t LenaHarqTestCase::m_dist

private

distance between nodes

Definition at line 64 of file lte-test-harq.h.

Referenced by DoRun().

◆ m_nUser

uint16_t LenaHarqTestCase::m_nUser

private

number of UE nodes

Definition at line 63 of file lte-test-harq.h.

Referenced by DoRun().

◆ m_throughputRef

double LenaHarqTestCase::m_throughputRef

private

throughput reference

Definition at line 66 of file lte-test-harq.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-harq.h
src/lte/test/lte-test-harq.cc
