ns3::MlmeAssociateConfirmParams Struct Reference

MLME-ASSOCIATE.confirm params. More...

#include "lr-wpan-mac.h"

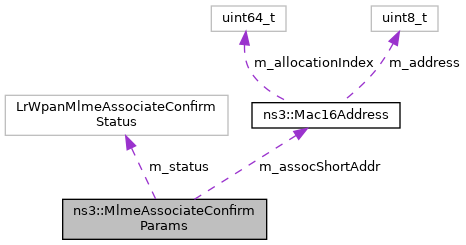

Collaboration diagram for ns3::MlmeAssociateConfirmParams:

Public Attributes
Mac16Address	m_assocShortAddr
	The short address used in the association request. More...
LrWpanMlmeAssociateConfirmStatus	m_status
	The status of a MLME-associate.request. More...

Detailed Description

MLME-ASSOCIATE.confirm params.

See 802.15.4-2011 Section 6.2.2.4

Definition at line 562 of file lr-wpan-mac.h.

Member Data Documentation

m_assocShortAddr

Mac16Address ns3::MlmeAssociateConfirmParams::m_assocShortAddr

The short address used in the association request.

Definition at line 564 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::LostAssocRespCommand(), ns3::LrWpanMac::MlmeAssociateRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), ns3::LrWpanMac::PrepareRetransmission(), and ns3::LrWpanMac::SetLrWpanMacState().

m_status

LrWpanMlmeAssociateConfirmStatus ns3::MlmeAssociateConfirmParams::m_status

Initial value:

{
        MLMEASSOC_INVALID_PARAMETER}

The status of a MLME-associate.request.

Definition at line 565 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::LostAssocRespCommand(), ns3::LrWpanMac::MlmeAssociateRequest(), ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PlmeSetAttributeConfirm(), ns3::LrWpanMac::PrepareRetransmission(), and ns3::LrWpanMac::SetLrWpanMacState().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
