The IPv6 representation of a network interface. More...

#include "ipv6-interface.h"

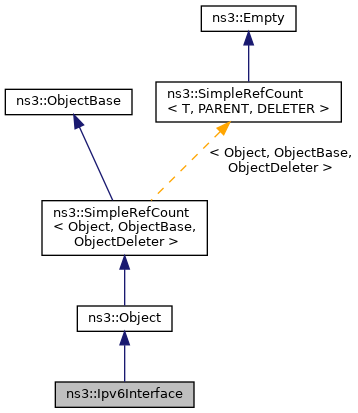

Inheritance diagram for ns3::Ipv6Interface:

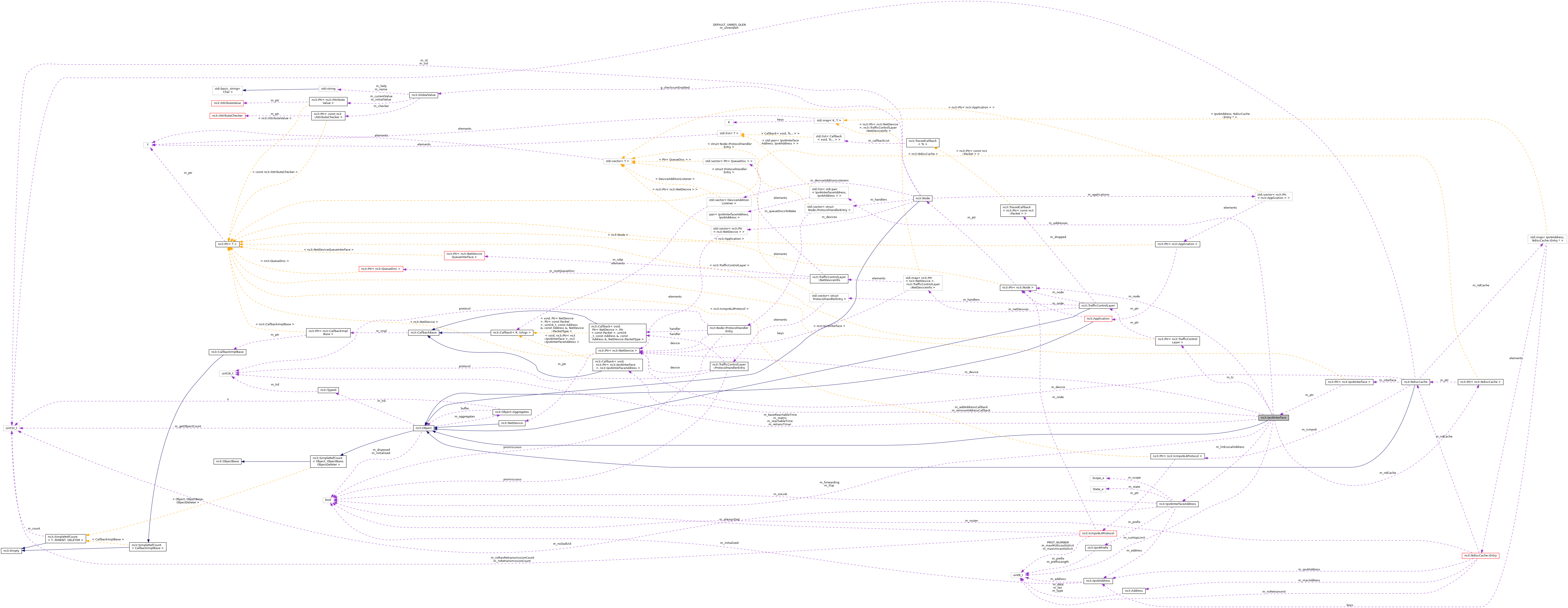

Collaboration diagram for ns3::Ipv6Interface:

Public Member Functions
	Ipv6Interface ()
	Constructs an Ipv6Interface. More...

	Ipv6Interface (const Ipv6Interface &)=delete

	~Ipv6Interface () override
	Destructor. More...

bool	AddAddress (Ipv6InterfaceAddress iface)
	Add an IPv6 address. More...

void	AddAddressCallback (Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress > addAddressCallback)
	This callback is set when an address is added from an interface with auto-generated Ndisc cache and it allow the neighbor cache helper to update neighbor's Ndisc cache. More...

Ipv6InterfaceAddress	GetAddress (uint32_t index) const
	Get an address from IPv6 interface. More...

Ipv6InterfaceAddress	GetAddressMatchingDestination (Ipv6Address dst)
	Get an address which is in the same network prefix as destination. More...

uint16_t	GetBaseReachableTime () const
	Get the base reachable time. More...

uint8_t	GetCurHopLimit () const
	Get the current hop limit value. More...

virtual Ptr< NetDevice >	GetDevice () const
	Get the NetDevice. More...

Ipv6InterfaceAddress	GetLinkLocalAddress () const
	Get link-local address from IPv6 interface. More...

uint16_t	GetMetric () const
	Get the metric. More...

uint32_t	GetNAddresses () const
	Get number of addresses on this IPv6 interface. More...

Ptr< NdiscCache >	GetNdiscCache () const

uint16_t	GetReachableTime () const
	Get the reachable time. More...

uint16_t	GetRetransTimer () const
	Get the retransmission timer. More...

bool	IsDown () const
	Is the interface DOWN ? More...

bool	IsForwarding () const
	If the interface allows forwarding packets. More...

bool	IsSolicitedMulticastAddress (Ipv6Address address) const
	Checks if the address is a Solicited Multicast address for this interface. More...

bool	IsUp () const
	Is the interface UP ? More...

Ipv6Interface &	operator= (const Ipv6Interface &)=delete

Ipv6InterfaceAddress	RemoveAddress (Ipv6Address address)
	Remove the given Ipv6 address from the interface. More...

Ipv6InterfaceAddress	RemoveAddress (uint32_t index)
	Remove an address from interface. More...

void	RemoveAddressCallback (Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress > removeAddressCallback)
	This callback is set when an address is removed from an interface with auto-generated Ndisc cache and it allow the neighbor cache helper to update neighbor's Ndisc cache. More...

void	Send (Ptr< Packet > p, const Ipv6Header &hdr, Ipv6Address dest)
	Send a packet through this interface. More...

void	SetBaseReachableTime (uint16_t baseReachableTime)
	Set the base reachable time. More...

void	SetCurHopLimit (uint8_t curHopLimit)
	Set the current hop limit. More...

void	SetDevice (Ptr< NetDevice > device)
	Set the NetDevice. More...

void	SetDown ()
	Disable this interface. More...

void	SetForwarding (bool forward)
	Set forwarding enabled or not. More...

void	SetMetric (uint16_t metric)
	Set the metric. More...

void	SetNode (Ptr< Node > node)
	Set node associated with interface. More...

void	SetNsDadUid (Ipv6Address address, uint32_t uid)
	Update NS DAD packet UID of an interface address. More...

void	SetReachableTime (uint16_t reachableTime)
	Set the reachable time. More...

void	SetRetransTimer (uint16_t retransTimer)
	Set the retransmission timer. More...

void	SetState (Ipv6Address address, Ipv6InterfaceAddress::State_e state)
	Update state of an interface address. More...

void	SetTrafficControl (Ptr< TrafficControlLayer > tc)
	Set the TrafficControlLayer. More...

void	SetUp ()
	Enable this interface. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< std::pair< Ipv6InterfaceAddress, Ipv6Address > >	Ipv6InterfaceAddressList
	Container for the Ipv6InterfaceAddresses. More...

typedef std::list< std::pair< Ipv6InterfaceAddress, Ipv6Address > >::const_iterator	Ipv6InterfaceAddressListCI
	Const Container Iterator for the Ipv6InterfaceAddresses. More...

typedef std::list< std::pair< Ipv6InterfaceAddress, Ipv6Address > >::iterator	Ipv6InterfaceAddressListI
	Container Iterator for the Ipv6InterfaceAddresses. More...

Private Member Functions
void	DoSetup ()
	Initialize interface. More...

Private Attributes
Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress >	m_addAddressCallback
	add address callback More...

Ipv6InterfaceAddressList	m_addresses
	The addresses assigned to this interface. More...

uint16_t	m_baseReachableTime
	Base value used for computing the random reachable time value (in millisecond). More...

uint8_t	m_curHopLimit
	Current hop limit. More...

Ptr< NetDevice >	m_device
	NetDevice associated with this interface. More...

bool	m_forwarding
	Forwarding state. More...

bool	m_ifup
	The state of this interface. More...

Ipv6InterfaceAddress	m_linkLocalAddress
	The link-local addresses assigned to this interface. More...

uint16_t	m_metric
	The metric. More...

Ptr< NdiscCache >	m_ndCache
	Neighbor cache. More...

Ptr< Node >	m_node
	Node associated with this interface. More...

uint16_t	m_reachableTime
	Reachable time (in millisecond). More...

Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress >	m_removeAddressCallback
	remove address callback More...

uint16_t	m_retransTimer
	Retransmission timer (in millisecond). More...

Ptr< TrafficControlLayer >	m_tc
	TrafficControlLayer associated with this interface. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The IPv6 representation of a network interface.

By default IPv6 interfaces are created in the "down" state with IP "fe80::1" and a /64 prefix. Before becoming usable, the user must invoke SetUp on them once the final IPv6 address and mask has been set.

Config Paths

ns3::Ipv6Interface is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::Ipv6L3Protocol/InterfaceList/[i]"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 52 of file ipv6-interface.h.

Member Typedef Documentation

◆ Ipv6InterfaceAddressList

typedef std::list<std::pair<Ipv6InterfaceAddress, Ipv6Address> > ns3::Ipv6Interface::Ipv6InterfaceAddressList

private

Container for the Ipv6InterfaceAddresses.

Definition at line 309 of file ipv6-interface.h.

◆ Ipv6InterfaceAddressListCI

typedef std::list<std::pair<Ipv6InterfaceAddress, Ipv6Address> >::const_iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListCI

private

Const Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 321 of file ipv6-interface.h.

◆ Ipv6InterfaceAddressListI

typedef std::list<std::pair<Ipv6InterfaceAddress, Ipv6Address> >::iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListI

private

Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 315 of file ipv6-interface.h.

Constructor & Destructor Documentation

◆ Ipv6Interface() [1/2]

ns3::Ipv6Interface::Ipv6Interface ( )

Constructs an Ipv6Interface.

Definition at line 51 of file ipv6-interface.cc.

References NS_LOG_FUNCTION.

◆ ~Ipv6Interface()

ns3::Ipv6Interface::~Ipv6Interface ( )

override

Destructor.

Definition at line 67 of file ipv6-interface.cc.

◆ Ipv6Interface() [2/2]

ns3::Ipv6Interface::Ipv6Interface ( const Ipv6Interface & )

delete

Member Function Documentation

◆ AddAddress()

bool ns3::Ipv6Interface::AddAddress ( Ipv6InterfaceAddress iface )

Add an IPv6 address.

Parameters

iface address to add

Returns: true if address was added, false otherwise

Definition at line 210 of file ipv6-interface.cc.

References ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Object::GetObject(), ns3::Ipv6::GetProtocol(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLocalhost(), m_addAddressCallback, m_addresses, m_device, m_node, ns3::Ipv6Address::MakeSolicitedAddress(), NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by AddIpv6Address(), DynamicNeighborCacheTest::AddIpv6Address(), DynamicPartialTest::AddIpv6Address(), and DoSetup().

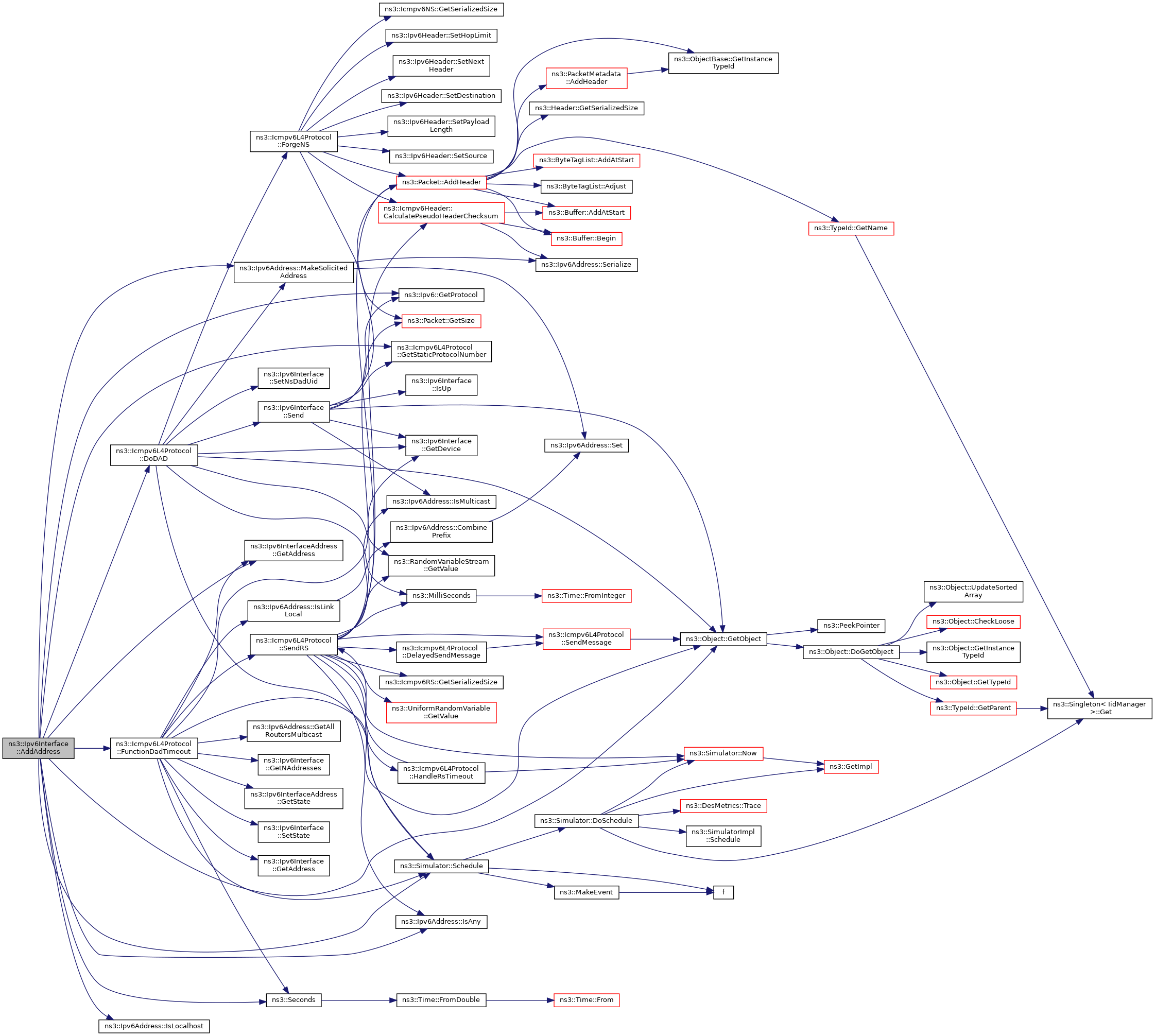

Here is the call graph for this function:

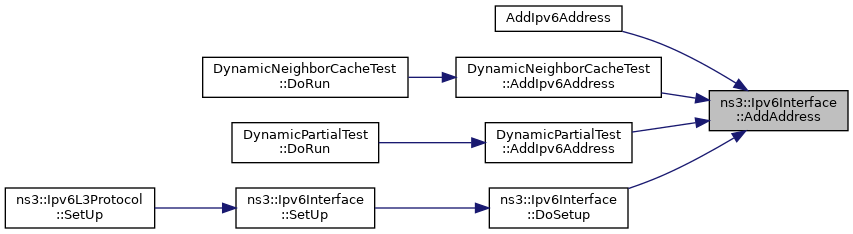

Here is the caller graph for this function:

◆ AddAddressCallback()

void ns3::Ipv6Interface::AddAddressCallback ( Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress > addAddressCallback )

This callback is set when an address is added from an interface with auto-generated Ndisc cache and it allow the neighbor cache helper to update neighbor's Ndisc cache.

Parameters

addAddressCallback Callback when remove an address.

Definition at line 605 of file ipv6-interface.cc.

References m_addAddressCallback, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::PopulateNeighborEntriesIpv6().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::Ipv6Interface::DoDispose ( )

overrideprotectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 72 of file ipv6-interface.cc.

References ns3::Object::DoDispose(), m_device, m_ndCache, m_node, m_tc, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoSetup()

void ns3::Ipv6Interface::DoSetup ( )

private

Initialize interface.

Definition at line 83 of file ipv6-interface.cc.

References AddAddress(), GetDevice(), ns3::Object::GetObject(), ns3::Ipv6::GetProtocol(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), m_device, m_linkLocalAddress, m_ndCache, m_node, ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), and NS_LOG_FUNCTION.

Referenced by SetUp().

Here is the call graph for this function:

Here is the caller graph for this function:

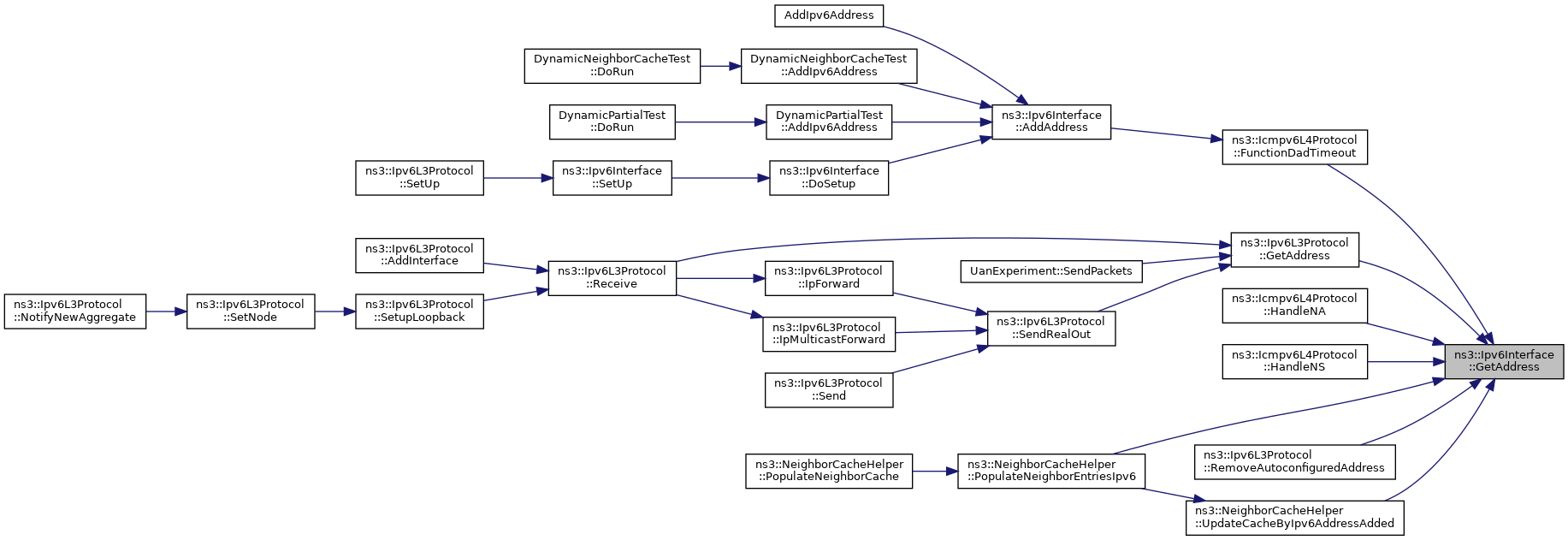

◆ GetAddress()

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddress ( uint32_t index ) const

Get an address from IPv6 interface.

Parameters

index index

Returns: Ipv6InterfaceAddress address whose index is i

Definition at line 297 of file ipv6-interface.cc.

References m_addresses, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetAddress(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::NeighborCacheHelper::PopulateNeighborEntriesIpv6(), ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress(), and ns3::NeighborCacheHelper::UpdateCacheByIpv6AddressAdded().

Here is the caller graph for this function:

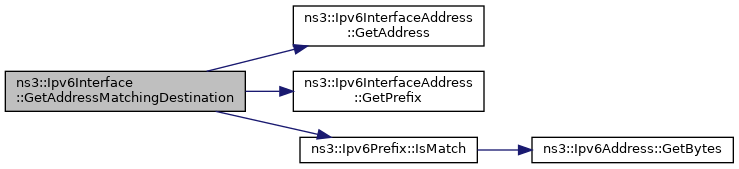

◆ GetAddressMatchingDestination()

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddressMatchingDestination ( Ipv6Address dst )

Get an address which is in the same network prefix as destination.

Parameters

dst	destination address

Returns: Corresponding Ipv6InterfaceAddress or assert if not found

Definition at line 387 of file ipv6-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6Prefix::IsMatch(), m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBaseReachableTime()

uint16_t ns3::Ipv6Interface::GetBaseReachableTime ( ) const

Get the base reachable time.

Returns: base reachable time

Definition at line 523 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION.

◆ GetCurHopLimit()

uint8_t ns3::Ipv6Interface::GetCurHopLimit ( ) const

Get the current hop limit value.

Returns: current hop limit

Definition at line 509 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

◆ GetDevice()

Ptr< NetDevice > ns3::Ipv6Interface::GetDevice ( ) const

virtual

Get the NetDevice.

Returns: the NetDevice associated with this interface

Definition at line 139 of file ipv6-interface.cc.

References m_device, and NS_LOG_FUNCTION.

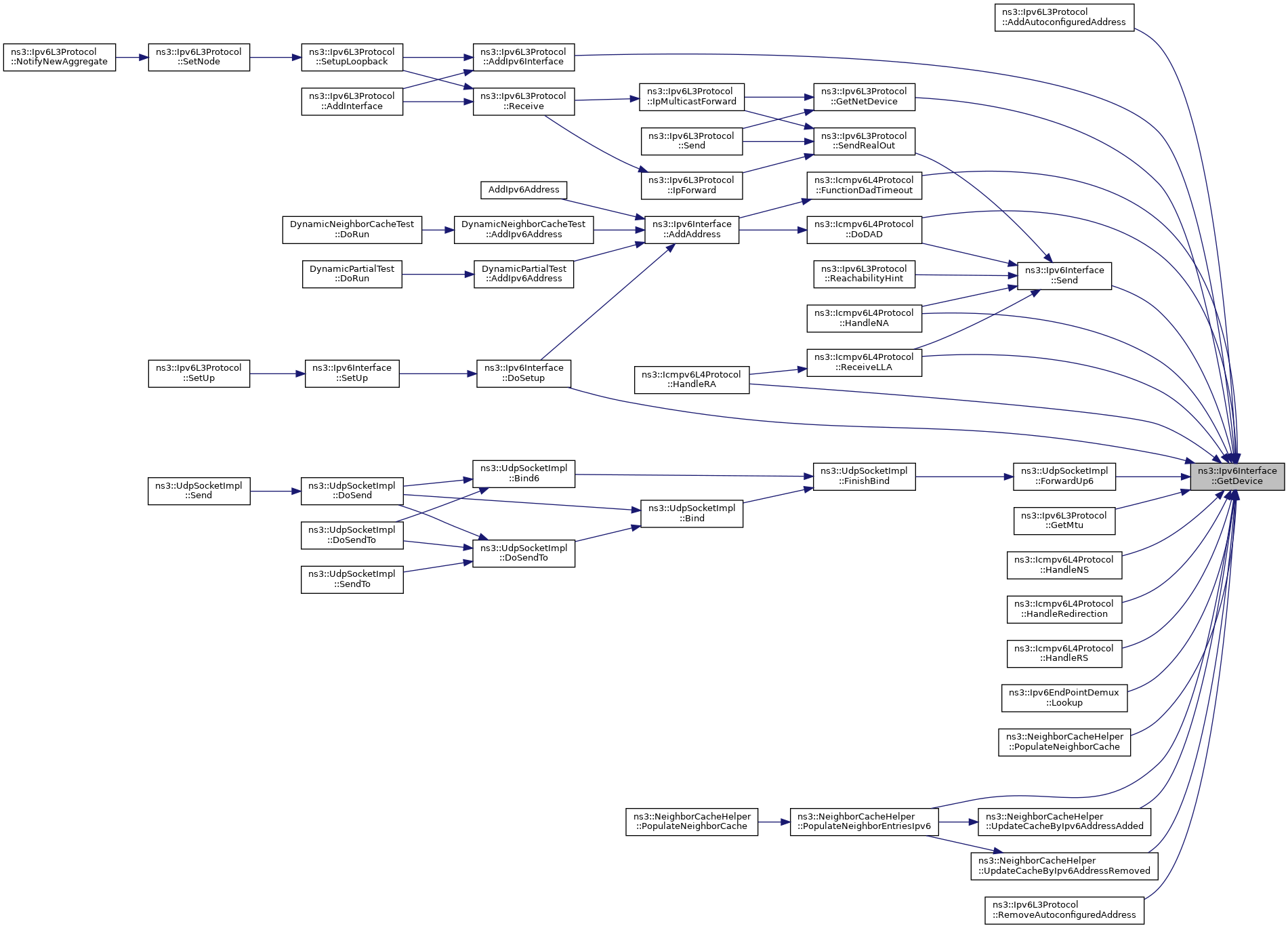

Here is the caller graph for this function:

◆ GetLinkLocalAddress()

Ipv6InterfaceAddress ns3::Ipv6Interface::GetLinkLocalAddress ( ) const

Get link-local address from IPv6 interface.

Returns: link-local Ipv6InterfaceAddress, assert if not found

Definition at line 271 of file ipv6-interface.cc.

References m_linkLocalAddress, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Ipv6L3Protocol::IpForward(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::NeighborCacheHelper::PopulateNeighborEntriesIpv6().

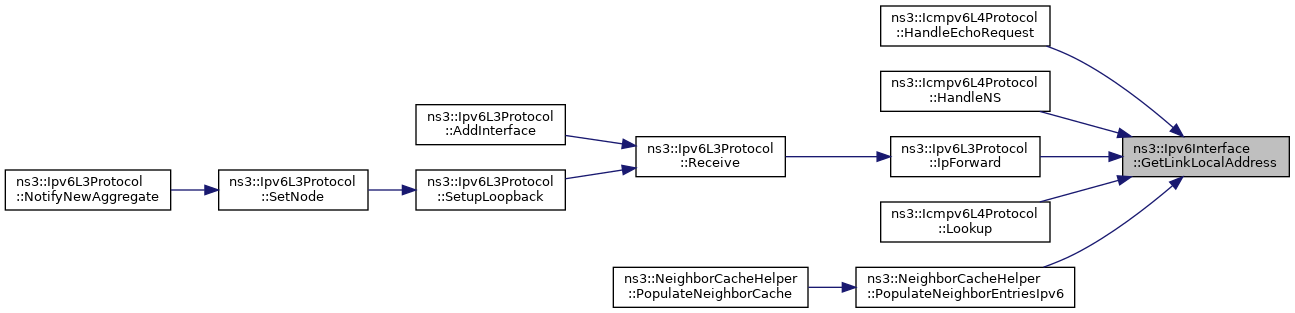

Here is the caller graph for this function:

◆ GetMetric()

uint16_t ns3::Ipv6Interface::GetMetric ( ) const

Get the metric.

Returns: the metric

Definition at line 153 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::GetMetric().

Here is the caller graph for this function:

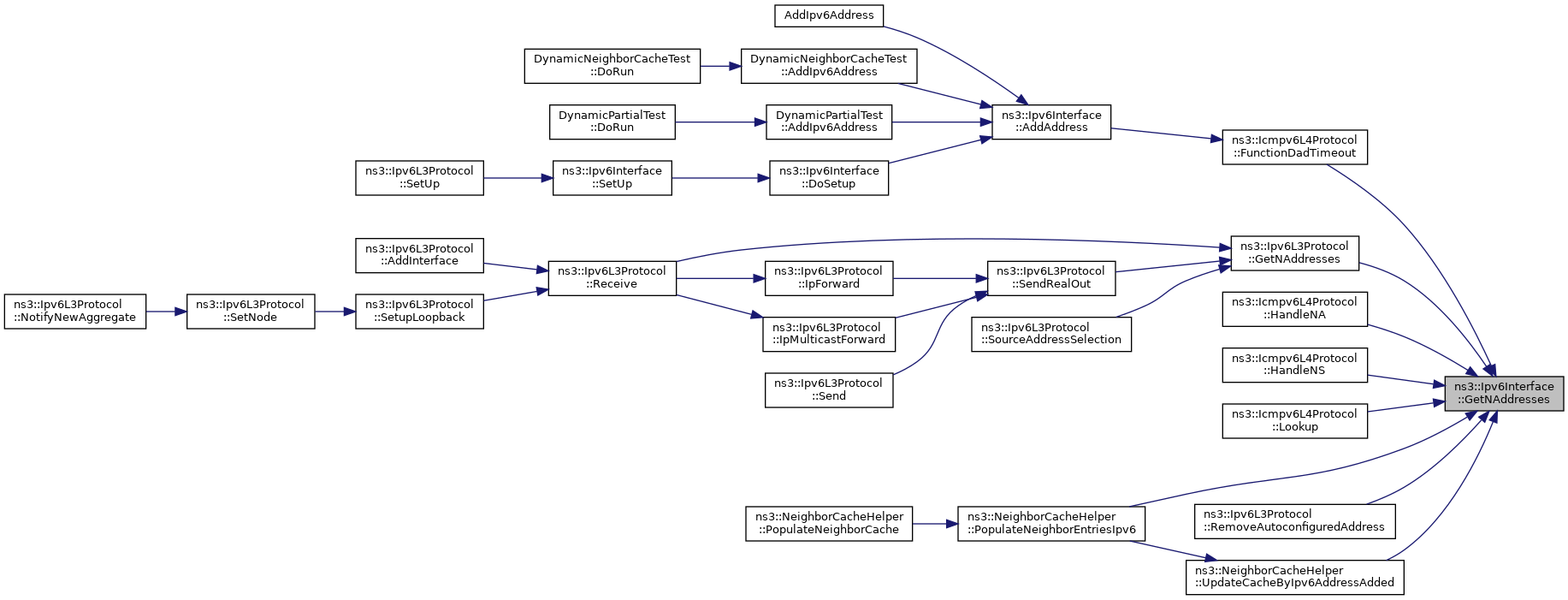

◆ GetNAddresses()

uint32_t ns3::Ipv6Interface::GetNAddresses ( ) const

Get number of addresses on this IPv6 interface.

Returns: number of address

Definition at line 322 of file ipv6-interface.cc.

References m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetNAddresses(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::Lookup(), ns3::NeighborCacheHelper::PopulateNeighborEntriesIpv6(), ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress(), and ns3::NeighborCacheHelper::UpdateCacheByIpv6AddressAdded().

Here is the caller graph for this function:

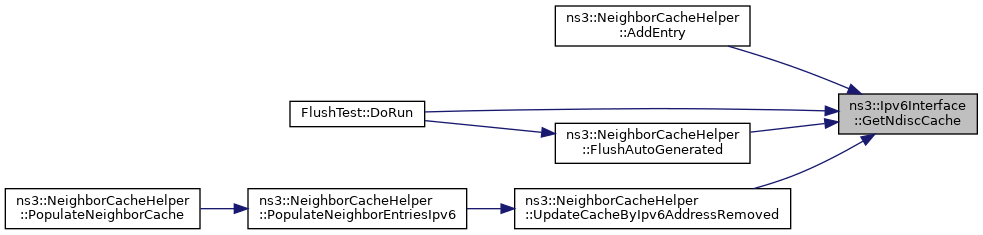

◆ GetNdiscCache()

Ptr< NdiscCache > ns3::Ipv6Interface::GetNdiscCache ( ) const

Returns: NDISC cache used by this interface

Definition at line 590 of file ipv6-interface.cc.

References m_ndCache, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::AddEntry(), FlushTest::DoRun(), ns3::NeighborCacheHelper::FlushAutoGenerated(), and ns3::NeighborCacheHelper::UpdateCacheByIpv6AddressRemoved().

Here is the caller graph for this function:

◆ GetReachableTime()

uint16_t ns3::Ipv6Interface::GetReachableTime ( ) const

Get the reachable time.

Returns: reachable time

Definition at line 537 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

◆ GetRetransTimer()

uint16_t ns3::Ipv6Interface::GetRetransTimer ( ) const

Get the retransmission timer.

Returns: retransmission timer

Definition at line 551 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::Ipv6Interface::GetTypeId ( )

static

Get the type ID.

Returns: type ID

Definition at line 45 of file ipv6-interface.cc.

References ns3::TypeId::SetParent().

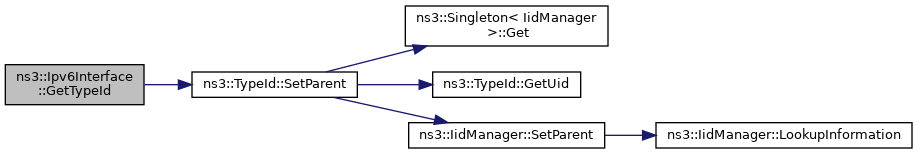

Here is the call graph for this function:

◆ IsDown()

bool ns3::Ipv6Interface::IsDown ( ) const

Is the interface DOWN ?

Returns: true if interface is disabled, false otherwise.

Definition at line 167 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION.

◆ IsForwarding()

bool ns3::Ipv6Interface::IsForwarding ( ) const

If the interface allows forwarding packets.

Returns: true if forwarding is enabled, false otherwise

Definition at line 196 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION.

◆ IsSolicitedMulticastAddress()

bool ns3::Ipv6Interface::IsSolicitedMulticastAddress ( Ipv6Address address ) const

Checks if the address is a Solicited Multicast address for this interface.

Parameters

address the address to check.

Returns: true if it is a solicited multicast address.

Definition at line 280 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

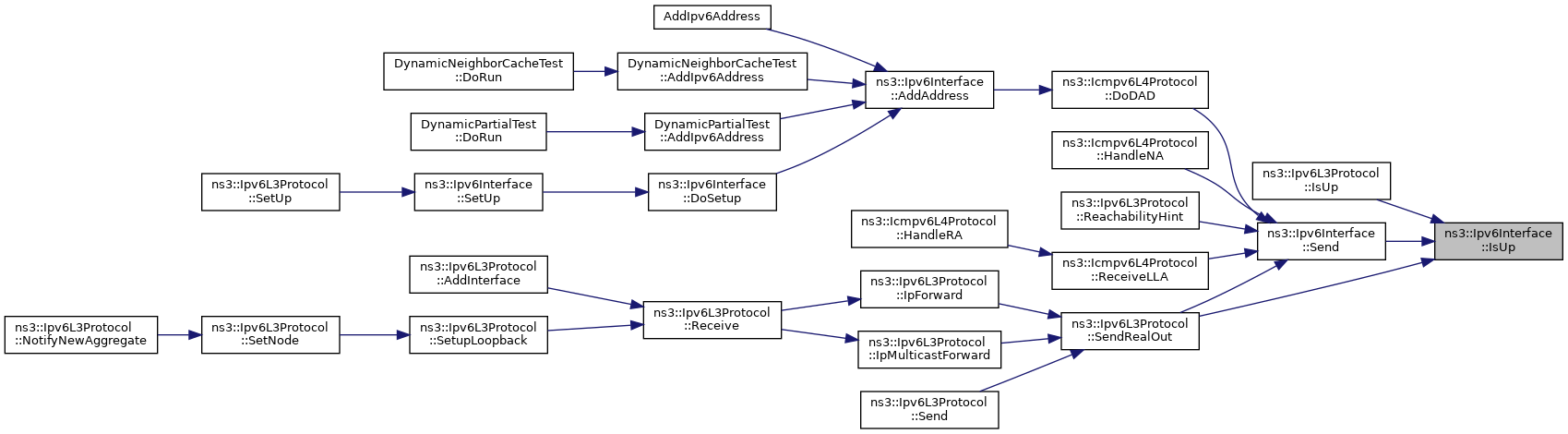

◆ IsUp()

bool ns3::Ipv6Interface::IsUp ( ) const

Is the interface UP ?

Returns: true if interface is enabled, false otherwise.

Definition at line 160 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::IsUp(), Send(), and ns3::Ipv6L3Protocol::SendRealOut().

Here is the caller graph for this function:

◆ operator=()

Ipv6Interface& ns3::Ipv6Interface::operator= ( const Ipv6Interface & )

delete

◆ RemoveAddress() [1/2]

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( Ipv6Address address )

Remove the given Ipv6 address from the interface.

Parameters

address The Ipv6 address to remove

Returns: The removed Ipv6 interface address; The null interface address if the interface did not contain the address or if loopback address was passed as argument

Definition at line 360 of file ipv6-interface.cc.

References first::address, ns3::Ipv6Address::GetLoopback(), m_addresses, m_removeAddressCallback, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ RemoveAddress() [2/2]

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( uint32_t index )

Remove an address from interface.

Parameters

index index to remove

Returns: Ipv6InterfaceAddress address whose index is index

Definition at line 329 of file ipv6-interface.cc.

References m_addresses, m_removeAddressCallback, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by RemoveIpv6Address(), DynamicNeighborCacheTest::RemoveIpv6Address(), and DynamicPartialTest::RemoveIpv6Address().

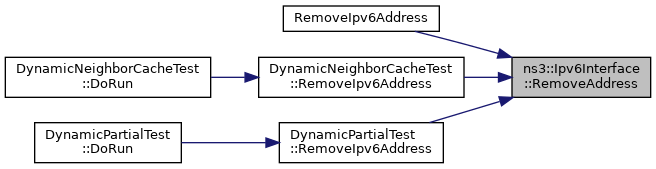

Here is the caller graph for this function:

◆ RemoveAddressCallback()

void ns3::Ipv6Interface::RemoveAddressCallback ( Callback< void, Ptr< Ipv6Interface >, Ipv6InterfaceAddress > removeAddressCallback )

This callback is set when an address is removed from an interface with auto-generated Ndisc cache and it allow the neighbor cache helper to update neighbor's Ndisc cache.

Parameters

removeAddressCallback Callback when remove an address.

Definition at line 597 of file ipv6-interface.cc.

References m_removeAddressCallback, and NS_LOG_FUNCTION.

Referenced by ns3::NeighborCacheHelper::PopulateNeighborEntriesIpv6().

Here is the caller graph for this function:

◆ Send()

void ns3::Ipv6Interface::Send	(	Ptr< Packet >	p,
		const Ipv6Header &	hdr,
		Ipv6Address	dest
	)

Send a packet through this interface.

Parameters

p	packet to send
hdr	IPv6 header
dest	next hop address of packet.

Note: This method will eventually call the private SendTo method which must be implemented by subclasses.

Todo:: additional checks needed here (such as whether multicast goes to loopback)?

Definition at line 408 of file ipv6-interface.cc.

References ns3::Packet::AddHeader(), GetDevice(), ns3::Object::GetObject(), ns3::Ipv6::GetProtocol(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Ipv6Address::IsMulticast(), IsUp(), m_addresses, m_device, m_ndCache, m_node, m_tc, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_HOST, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Ipv6L3Protocol::ReachabilityHint(), ns3::Icmpv6L4Protocol::ReceiveLLA(), and ns3::Ipv6L3Protocol::SendRealOut().

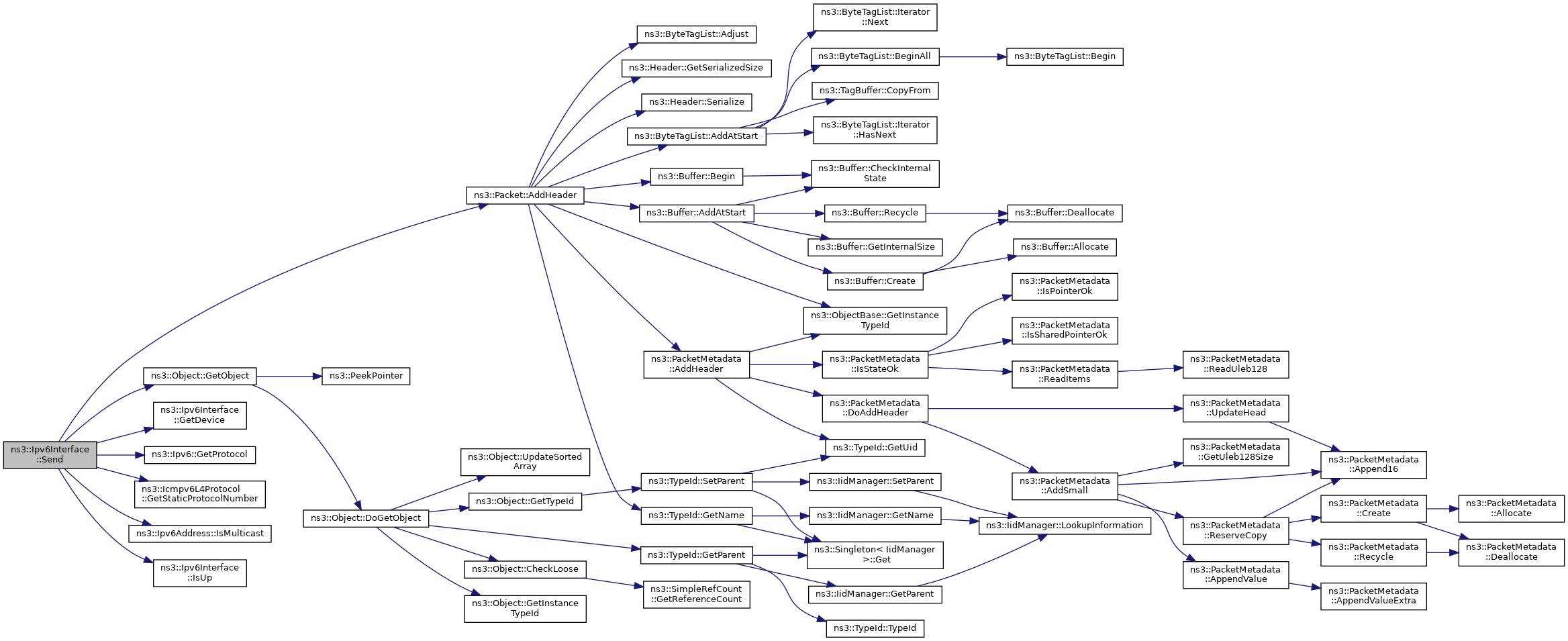

Here is the call graph for this function:

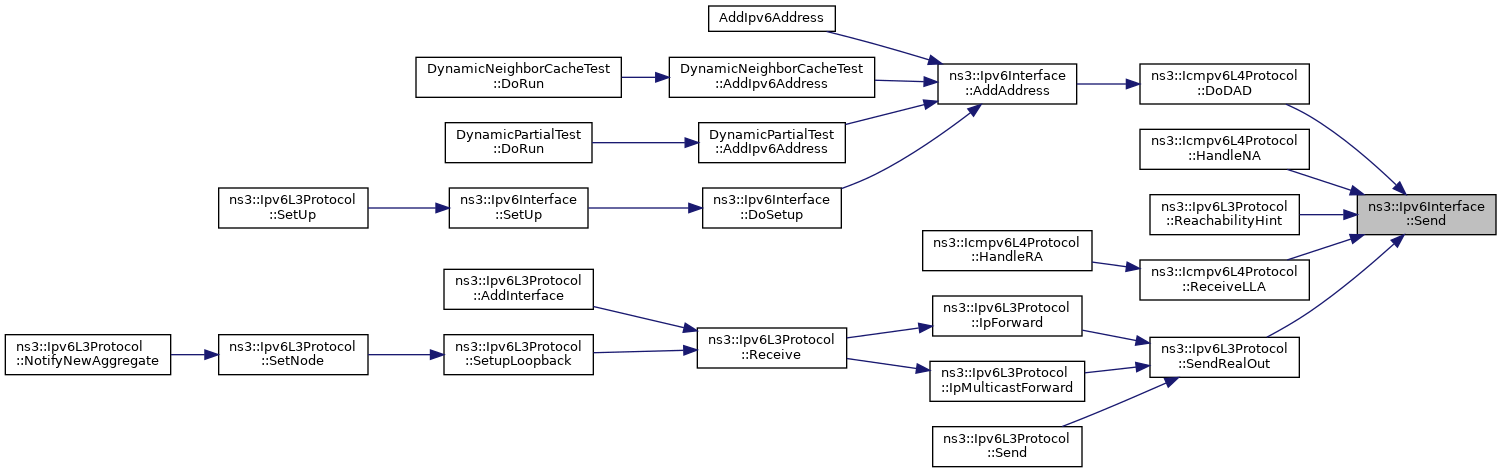

Here is the caller graph for this function:

◆ SetBaseReachableTime()

void ns3::Ipv6Interface::SetBaseReachableTime ( uint16_t baseReachableTime )

Set the base reachable time.

Parameters

baseReachableTime the value to set

Definition at line 516 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION.

◆ SetCurHopLimit()

void ns3::Ipv6Interface::SetCurHopLimit ( uint8_t curHopLimit )

Set the current hop limit.

Parameters

curHopLimit the value to set

Definition at line 502 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

◆ SetDevice()

void ns3::Ipv6Interface::SetDevice ( Ptr< NetDevice > device )

Set the NetDevice.

Parameters

device NetDevice

Definition at line 125 of file ipv6-interface.cc.

References m_device, and NS_LOG_FUNCTION.

◆ SetDown()

void ns3::Ipv6Interface::SetDown ( )

Disable this interface.

Definition at line 187 of file ipv6-interface.cc.

References ns3::NdiscCache::Flush(), m_addresses, m_ifup, m_ndCache, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetDown().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetForwarding()

void ns3::Ipv6Interface::SetForwarding ( bool forward )

Set forwarding enabled or not.

Parameters

forward forwarding state

Definition at line 203 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetForwarding().

Here is the caller graph for this function:

◆ SetMetric()

void ns3::Ipv6Interface::SetMetric ( uint16_t metric )

Set the metric.

Parameters

metric configured routing metric (cost) of this interface

Definition at line 146 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetMetric().

Here is the caller graph for this function:

◆ SetNode()

void ns3::Ipv6Interface::SetNode ( Ptr< Node > node )

Set node associated with interface.

Parameters

node node

Definition at line 118 of file ipv6-interface.cc.

References m_node, and NS_LOG_FUNCTION.

◆ SetNsDadUid()

void ns3::Ipv6Interface::SetNsDadUid	(	Ipv6Address	address,
		uint32_t	uid
	)

Update NS DAD packet UID of an interface address.

Parameters

address	IPv6 address
uid	packet UID

Definition at line 574 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::DoDAD().

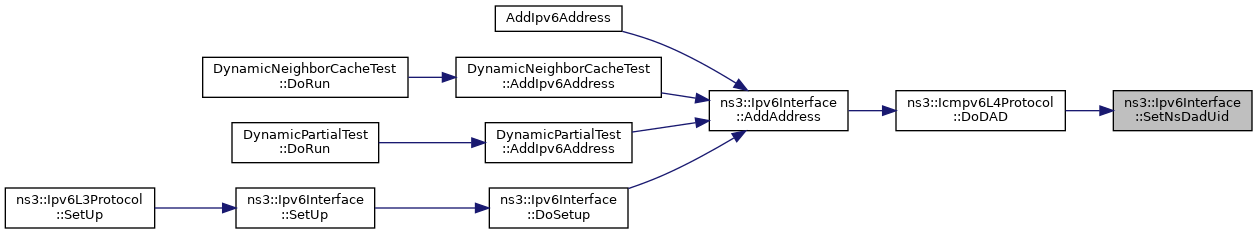

Here is the caller graph for this function:

◆ SetReachableTime()

void ns3::Ipv6Interface::SetReachableTime ( uint16_t reachableTime )

Set the reachable time.

Parameters

reachableTime value to set

Definition at line 530 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

◆ SetRetransTimer()

void ns3::Ipv6Interface::SetRetransTimer ( uint16_t retransTimer )

Set the retransmission timer.

Parameters

retransTimer value to set

Definition at line 544 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

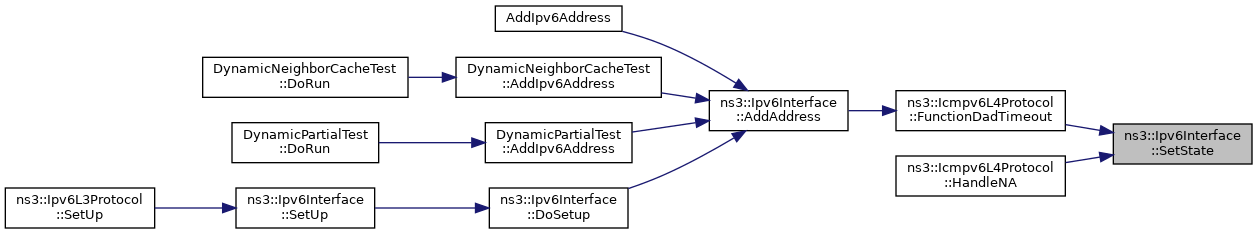

◆ SetState()

void ns3::Ipv6Interface::SetState	(	Ipv6Address	address,
		Ipv6InterfaceAddress::State_e	state
	)

Update state of an interface address.

Parameters

address	IPv6 address
state	new state

Definition at line 558 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), and ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

◆ SetTrafficControl()

void ns3::Ipv6Interface::SetTrafficControl ( Ptr< TrafficControlLayer > tc )

Set the TrafficControlLayer.

Parameters

tc	TrafficControlLayer object

Definition at line 132 of file ipv6-interface.cc.

References m_tc, and NS_LOG_FUNCTION.

◆ SetUp()

void ns3::Ipv6Interface::SetUp ( )

Enable this interface.

Definition at line 174 of file ipv6-interface.cc.

References DoSetup(), m_ifup, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetUp().

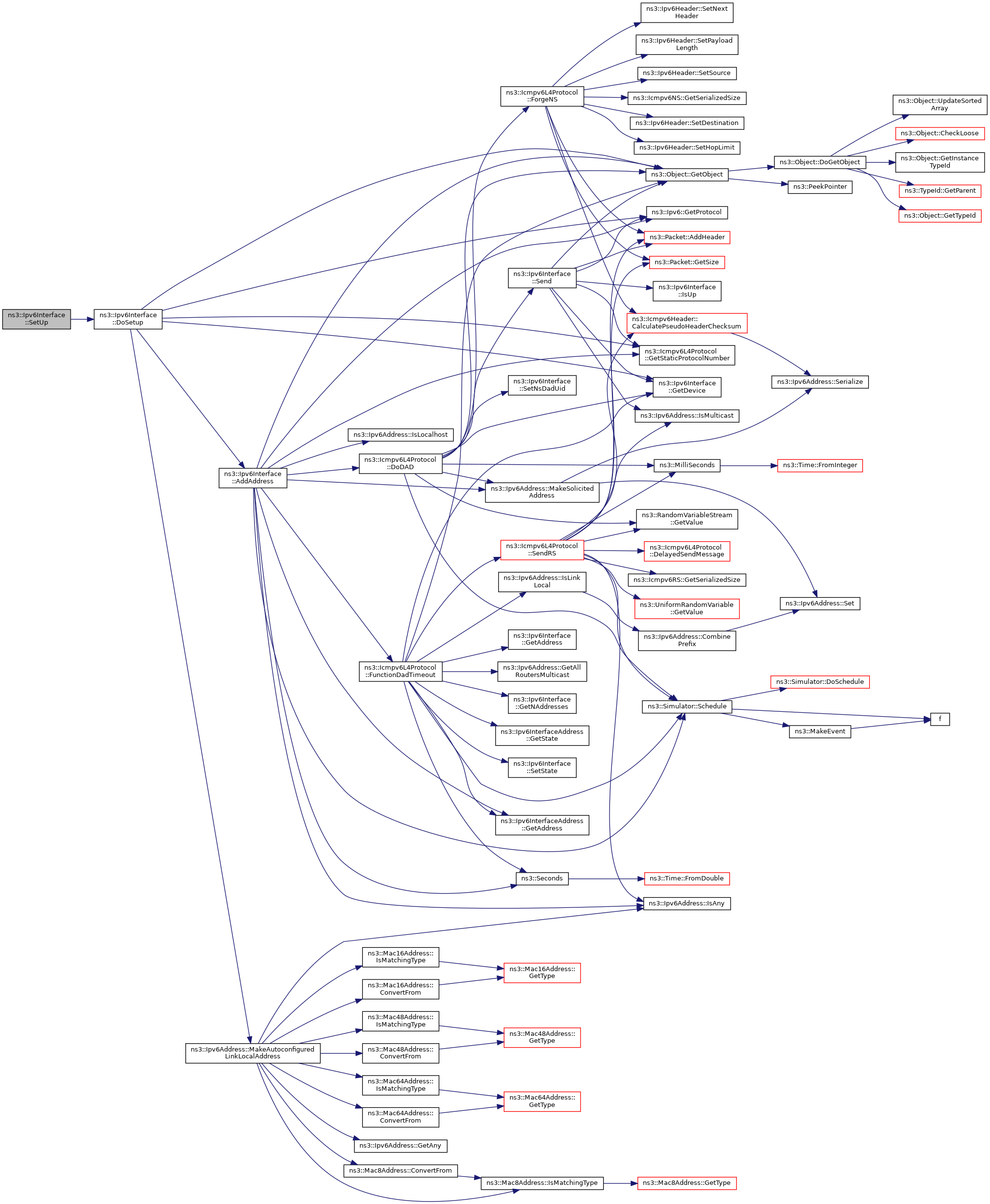

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_addAddressCallback

Callback<void, Ptr<Ipv6Interface>, Ipv6InterfaceAddress> ns3::Ipv6Interface::m_addAddressCallback

private

add address callback

Definition at line 399 of file ipv6-interface.h.

Referenced by AddAddress(), and AddAddressCallback().

◆ m_addresses

Ipv6InterfaceAddressList ns3::Ipv6Interface::m_addresses

private

The addresses assigned to this interface.

Definition at line 331 of file ipv6-interface.h.

Referenced by AddAddress(), GetAddress(), GetAddressMatchingDestination(), GetNAddresses(), IsSolicitedMulticastAddress(), RemoveAddress(), Send(), SetDown(), SetNsDadUid(), and SetState().

◆ m_baseReachableTime

uint16_t ns3::Ipv6Interface::m_baseReachableTime

private

Base value used for computing the random reachable time value (in millisecond).

Definition at line 381 of file ipv6-interface.h.

Referenced by GetBaseReachableTime(), and SetBaseReachableTime().

◆ m_curHopLimit

uint8_t ns3::Ipv6Interface::m_curHopLimit

private

Current hop limit.

Definition at line 376 of file ipv6-interface.h.

Referenced by GetCurHopLimit(), and SetCurHopLimit().

◆ m_device

Ptr<NetDevice> ns3::Ipv6Interface::m_device

private

NetDevice associated with this interface.

Definition at line 361 of file ipv6-interface.h.

Referenced by AddAddress(), DoDispose(), DoSetup(), GetDevice(), Send(), and SetDevice().

◆ m_forwarding

bool ns3::Ipv6Interface::m_forwarding

private

Forwarding state.

Definition at line 346 of file ipv6-interface.h.

Referenced by IsForwarding(), and SetForwarding().

◆ m_ifup

bool ns3::Ipv6Interface::m_ifup

private

The state of this interface.

Definition at line 341 of file ipv6-interface.h.

Referenced by IsDown(), IsUp(), SetDown(), and SetUp().

◆ m_linkLocalAddress

Ipv6InterfaceAddress ns3::Ipv6Interface::m_linkLocalAddress

private

The link-local addresses assigned to this interface.

Definition at line 336 of file ipv6-interface.h.

Referenced by DoSetup(), and GetLinkLocalAddress().

◆ m_metric

uint16_t ns3::Ipv6Interface::m_metric

private

The metric.

Definition at line 351 of file ipv6-interface.h.

Referenced by GetMetric(), and SetMetric().

◆ m_ndCache

Ptr<NdiscCache> ns3::Ipv6Interface::m_ndCache

private

Neighbor cache.

Definition at line 371 of file ipv6-interface.h.

Referenced by DoDispose(), DoSetup(), GetNdiscCache(), Send(), and SetDown().

◆ m_node

Ptr<Node> ns3::Ipv6Interface::m_node

private

Node associated with this interface.

Definition at line 356 of file ipv6-interface.h.

Referenced by AddAddress(), DoDispose(), DoSetup(), Send(), and SetNode().

◆ m_reachableTime

uint16_t ns3::Ipv6Interface::m_reachableTime

private

Reachable time (in millisecond).

The time a neighbor is considered reachable after receiving a reachability confirmation.

Definition at line 387 of file ipv6-interface.h.

Referenced by GetReachableTime(), and SetReachableTime().

◆ m_removeAddressCallback

Callback<void, Ptr<Ipv6Interface>, Ipv6InterfaceAddress> ns3::Ipv6Interface::m_removeAddressCallback

private

remove address callback

Definition at line 396 of file ipv6-interface.h.

Referenced by RemoveAddress(), and RemoveAddressCallback().

◆ m_retransTimer

uint16_t ns3::Ipv6Interface::m_retransTimer

private

Retransmission timer (in millisecond).

Time between retransmission of NS.

Definition at line 393 of file ipv6-interface.h.

Referenced by GetRetransTimer(), and SetRetransTimer().

◆ m_tc

Ptr<TrafficControlLayer> ns3::Ipv6Interface::m_tc

private

TrafficControlLayer associated with this interface.

Definition at line 366 of file ipv6-interface.h.

Referenced by DoDispose(), Send(), and SetTrafficControl().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-interface.h
src/internet/model/ipv6-interface.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Member Typedef Documentation

◆ Ipv6InterfaceAddressList

◆ Ipv6InterfaceAddressListCI

◆ Ipv6InterfaceAddressListI

Constructor & Destructor Documentation

◆ Ipv6Interface() [1/2]

◆ ~Ipv6Interface()

◆ Ipv6Interface() [2/2]

Member Function Documentation

◆ AddAddress()

◆ AddAddressCallback()

◆ DoDispose()

◆ DoSetup()

◆ GetAddress()

◆ GetAddressMatchingDestination()

◆ GetBaseReachableTime()

◆ GetCurHopLimit()

◆ GetDevice()

◆ GetLinkLocalAddress()

◆ GetMetric()

◆ GetNAddresses()

◆ GetNdiscCache()

◆ GetReachableTime()

◆ GetRetransTimer()

◆ GetTypeId()

◆ IsDown()

◆ IsForwarding()

◆ IsSolicitedMulticastAddress()

◆ IsUp()

◆ operator=()

◆ RemoveAddress() [1/2]

◆ RemoveAddress() [2/2]

◆ RemoveAddressCallback()

◆ Send()

◆ SetBaseReachableTime()

◆ SetCurHopLimit()

◆ SetDevice()

◆ SetDown()

◆ SetForwarding()

◆ SetMetric()

◆ SetNode()

◆ SetNsDadUid()

◆ SetReachableTime()

◆ SetRetransTimer()

◆ SetState()

◆ SetTrafficControl()

◆ SetUp()

Member Data Documentation

◆ m_addAddressCallback

◆ m_addresses

◆ m_baseReachableTime

◆ m_curHopLimit

◆ m_device

◆ m_forwarding

◆ m_ifup

◆ m_linkLocalAddress

◆ m_metric

◆ m_ndCache

◆ m_node

◆ m_reachableTime

◆ m_removeAddressCallback

◆ m_retransTimer

◆ m_tc
