Simple average, min, max and std. More...

#include "average.h"

Inheritance diagram for ns3::Average< T >:

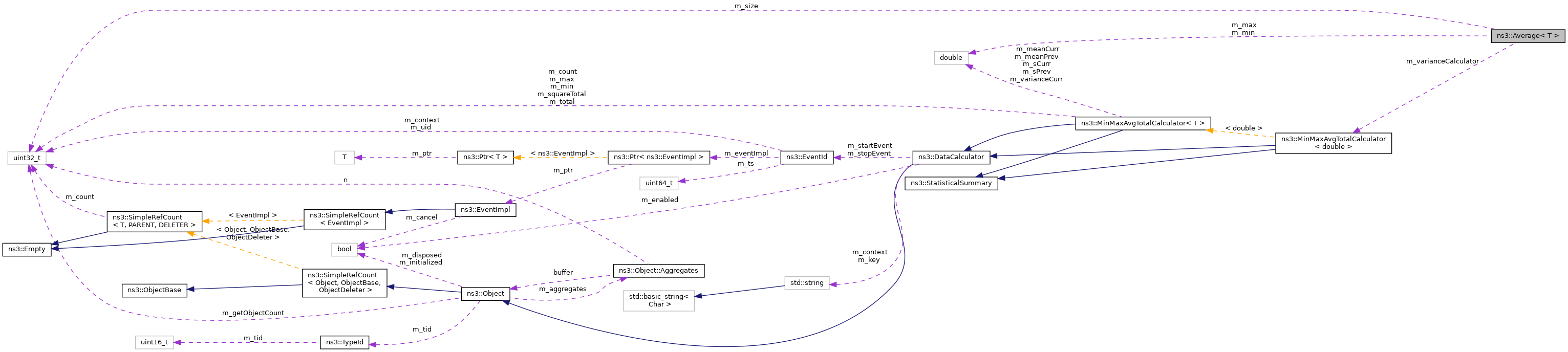

Collaboration diagram for ns3::Average< T >:

Public Member Functions
	Average ()

double	Avg () const
	Sample average. More...

uint32_t	Count () const
	Sample size. More...

T	Max () const
	Sample maximum. More...

double	Mean () const
	Sample estimate of mean, alias to Avg. More...

T	Min () const
	Sample minimum. More...

void	Reset ()
	Reset statistics. More...

double	Stddev () const
	Sample standard deviation. More...

void	Update (const T &x)
	Add new sample. More...

double	Var () const
	Sample unbiased nbiased estimate of variance. More...

Error of the mean estimates
double	Error90 () const
	Margin of error of the mean for 90% confidence level. More...

double	Error95 () const
	Margin of error of the mean for 95% confidence level. More...

double	Error99 () const
	Margin of error of the mean for 99% confidence level. More...

Private Attributes
T	m_max
	Maximum value observed. More...

T	m_min
	Minimum value observed. More...

uint32_t	m_size
	Number of sampled data. More...

MinMaxAvgTotalCalculator< double >	m_varianceCalculator
	Variance calculator. More...

Detailed Description

template<typename T = double>
class ns3::Average< T >

Simple average, min, max and std.

deviation calculator

Definition at line 41 of file average.h.

Constructor & Destructor Documentation

◆ Average()

template<typename T = double>

ns3::Average< T >::Average ( )

inline

Definition at line 44 of file average.h.

Member Function Documentation

◆ Avg()

template<typename T = double>

double ns3::Average< T >::Avg ( ) const

inline

Sample average.

Returns: the average of the sample

Definition at line 107 of file average.h.

References ns3::MinMaxAvgTotalCalculator< T >::getMean(), and ns3::Average< T >::m_varianceCalculator.

Referenced by ns3::Average< T >::Mean(), and ns3::Ping::PrintReport().

Here is the call graph for this function:

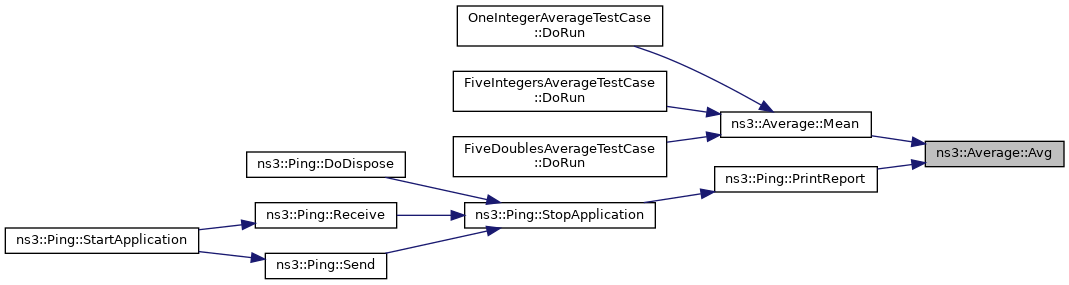

Here is the caller graph for this function:

◆ Count()

template<typename T = double>

uint32_t ns3::Average< T >::Count ( ) const

inline

Sample size.

Returns: the sample size

Definition at line 80 of file average.h.

References ns3::Average< T >::m_size.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), ns3::Average< T >::Error90(), ns3::Average< T >::Error95(), ns3::Average< T >::Error99(), ns3::Ping::PrintReport(), and ns3::Ping::Send().

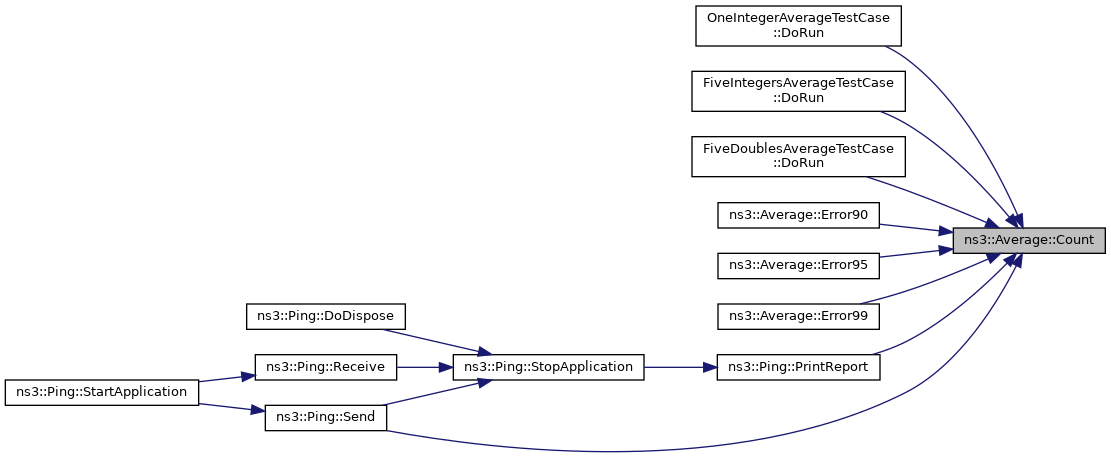

Here is the caller graph for this function:

◆ Error90()

template<typename T = double>

double ns3::Average< T >::Error90 ( ) const

inline

Margin of error of the mean for 90% confidence level.

Note that estimates are valid for

uncorrelated measurements,
normal distribution and
large enough sample size.

Returns: Margin of error of the mean for 90% confidence level

Definition at line 154 of file average.h.

References ns3::Average< T >::Count(), and ns3::Average< T >::Var().

Here is the call graph for this function:

◆ Error95()

template<typename T = double>

double ns3::Average< T >::Error95 ( ) const

inline

Margin of error of the mean for 95% confidence level.

Note that estimates are valid for

uncorrelated measurements,
normal distribution and
large enough sample size.

Returns: Margin of error of the mean for 95% confidence level

Definition at line 169 of file average.h.

References ns3::Average< T >::Count(), and ns3::Average< T >::Var().

Here is the call graph for this function:

◆ Error99()

template<typename T = double>

double ns3::Average< T >::Error99 ( ) const

inline

Margin of error of the mean for 99% confidence level.

Note that estimates are valid for

uncorrelated measurements,
normal distribution and
large enough sample size.

Returns: Margin of error of the mean for 99% confidence level

Definition at line 185 of file average.h.

References ns3::Average< T >::Count(), and ns3::Average< T >::Var().

Here is the call graph for this function:

◆ Max()

template<typename T = double>

T ns3::Average< T >::Max ( ) const

inline

Sample maximum.

Returns: the maximum of the sample

Definition at line 98 of file average.h.

References ns3::Average< T >::m_max.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), ns3::Ping::PrintReport(), and ns3::Ping::Send().

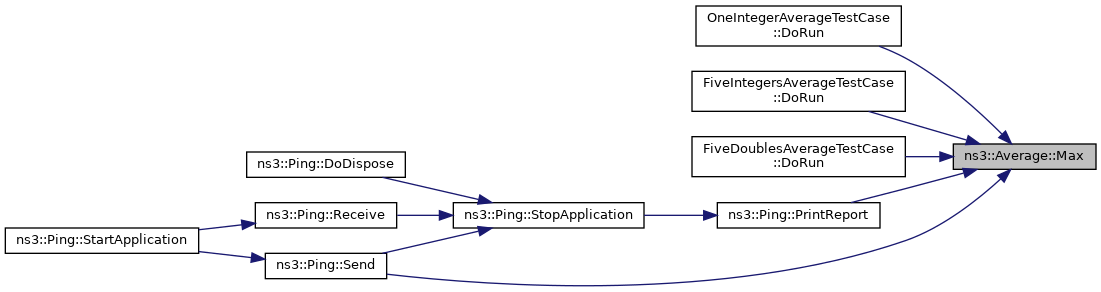

Here is the caller graph for this function:

◆ Mean()

template<typename T = double>

double ns3::Average< T >::Mean ( ) const

inline

Sample estimate of mean, alias to Avg.

Returns: the average of the sample

Definition at line 116 of file average.h.

References ns3::Average< T >::Avg().

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), and FiveDoublesAverageTestCase::DoRun().

Here is the call graph for this function:

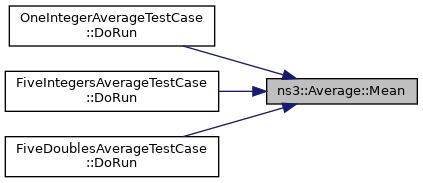

Here is the caller graph for this function:

◆ Min()

template<typename T = double>

T ns3::Average< T >::Min ( ) const

inline

Sample minimum.

Returns: the minimum of the sample

Definition at line 89 of file average.h.

References ns3::Average< T >::m_min.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::Ping::PrintReport().

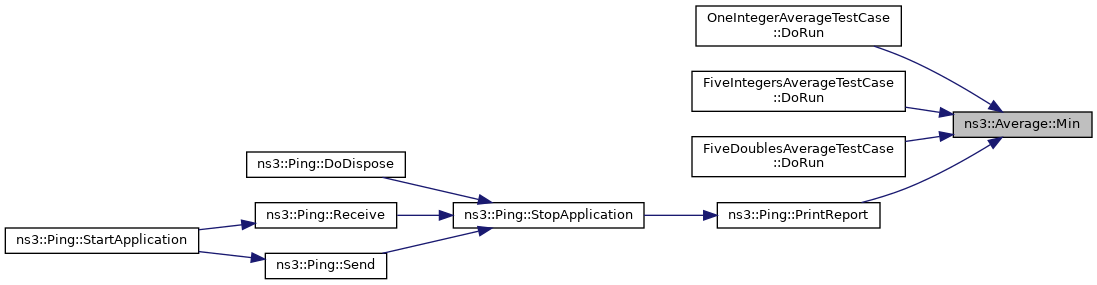

Here is the caller graph for this function:

◆ Reset()

template<typename T = double>

void ns3::Average< T >::Reset ( )

inline

Reset statistics.

Definition at line 66 of file average.h.

References ns3::Average< T >::m_max, ns3::Average< T >::m_min, ns3::Average< T >::m_size, ns3::Average< T >::m_varianceCalculator, max, and ns3::MinMaxAvgTotalCalculator< T >::Reset().

Here is the call graph for this function:

◆ Stddev()

template<typename T = double>

double ns3::Average< T >::Stddev ( ) const

inline

Sample standard deviation.

Returns: the standard deviation

Definition at line 134 of file average.h.

References ns3::Average< T >::Var().

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::Ping::PrintReport().

Here is the call graph for this function:

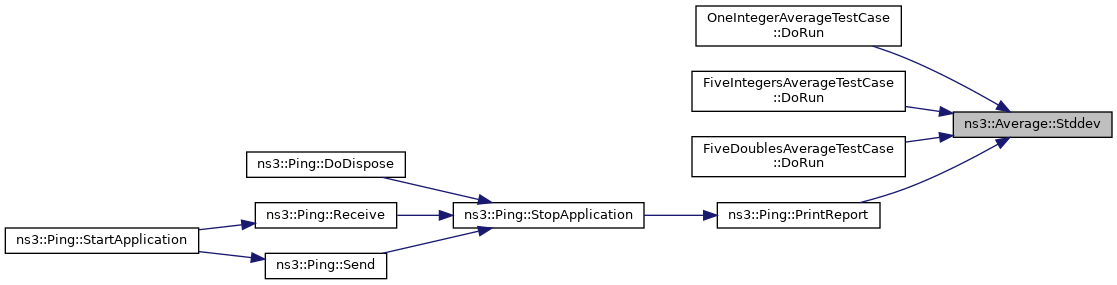

Here is the caller graph for this function:

◆ Update()

template<typename T = double>

void ns3::Average< T >::Update ( const T & x )

inline

Add new sample.

Parameters

x	The sample

Definition at line 55 of file average.h.

References ns3::Average< T >::m_max, ns3::Average< T >::m_min, ns3::Average< T >::m_size, ns3::Average< T >::m_varianceCalculator, max, min, ns3::MinMaxAvgTotalCalculator< T >::Update(), and two-ray-to-three-gpp-ch-calibration::x.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::Ping::Receive().

Here is the call graph for this function:

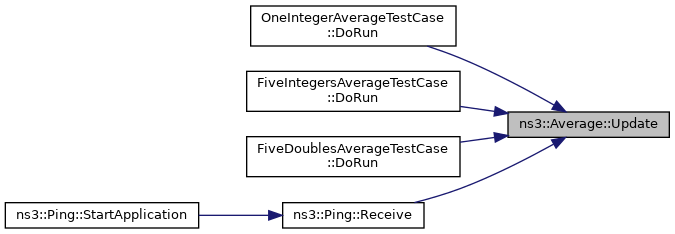

Here is the caller graph for this function:

◆ Var()

template<typename T = double>

double ns3::Average< T >::Var ( ) const

inline

Sample unbiased nbiased estimate of variance.

Returns: the unbiased nbiased estimate of variance

Definition at line 125 of file average.h.

References ns3::MinMaxAvgTotalCalculator< T >::getVariance(), and ns3::Average< T >::m_varianceCalculator.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), ns3::Average< T >::Error90(), ns3::Average< T >::Error95(), ns3::Average< T >::Error99(), and ns3::Average< T >::Stddev().

Here is the call graph for this function:

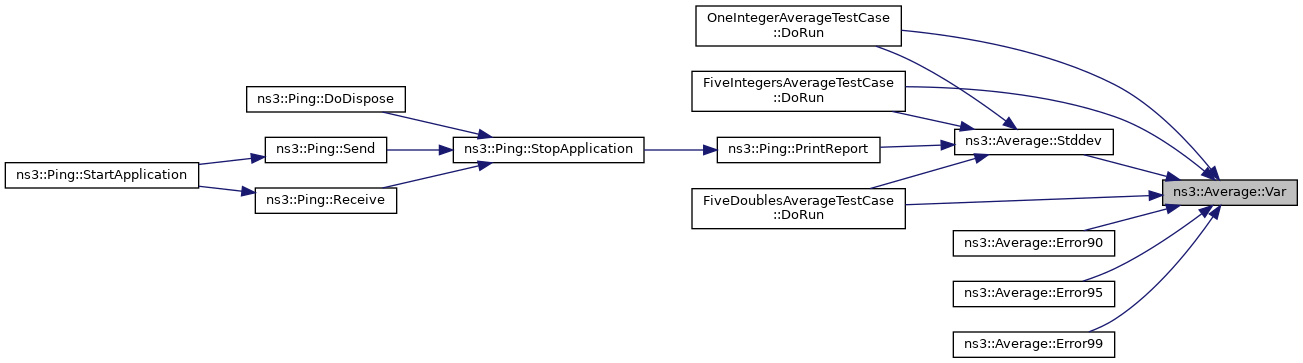

Here is the caller graph for this function:

Member Data Documentation

◆ m_max

template<typename T = double>

T ns3::Average< T >::m_max

private

Maximum value observed.

Definition at line 195 of file average.h.

Referenced by ns3::Average< T >::Max(), ns3::Average< T >::Reset(), and ns3::Average< T >::Update().

◆ m_min

template<typename T = double>

T ns3::Average< T >::m_min

private

Minimum value observed.

Definition at line 194 of file average.h.

Referenced by ns3::Average< T >::Min(), ns3::Average< T >::Reset(), and ns3::Average< T >::Update().

◆ m_size

template<typename T = double>

uint32_t ns3::Average< T >::m_size

private

Number of sampled data.

Definition at line 193 of file average.h.

Referenced by ns3::Average< T >::Count(), ns3::Average< T >::Reset(), and ns3::Average< T >::Update().

◆ m_varianceCalculator

template<typename T = double>

MinMaxAvgTotalCalculator<double> ns3::Average< T >::m_varianceCalculator

private

Variance calculator.

Definition at line 196 of file average.h.

Referenced by ns3::Average< T >::Avg(), ns3::Average< T >::Reset(), ns3::Average< T >::Update(), and ns3::Average< T >::Var().

The documentation for this class was generated from the following file:

src/stats/model/average.h
